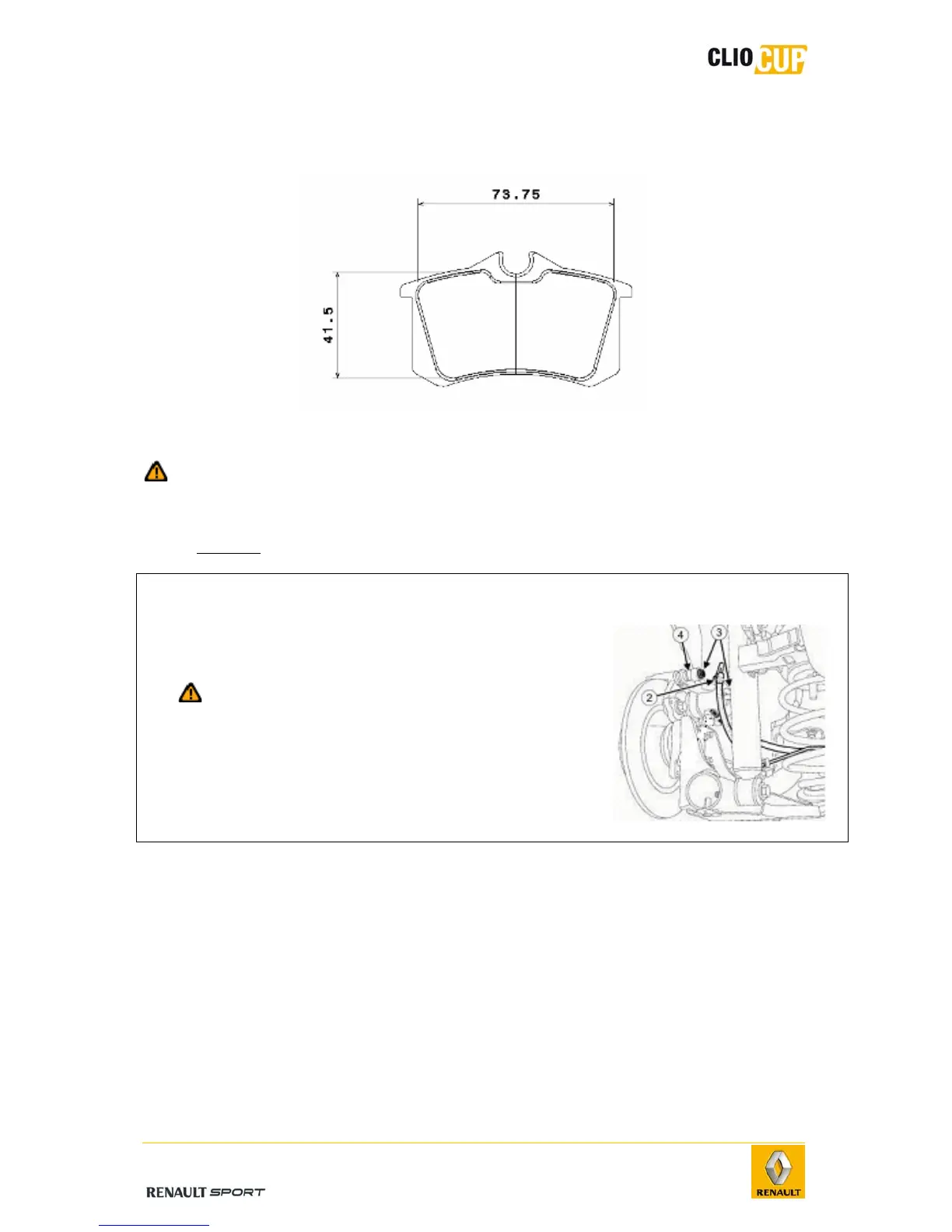

Maximum authorized contact surface with the disc
The maximum rear brake pad friction material surface area tolerated on the Clio Cup is
shown on the following diagram.
Brake calipers
The brake calipers cannot be repaired. If a fault is detected on the caliper, it must
be systematically replaced.
- Removal
Operations Photos
1 -
Remove the wheel.
2 -
Remove the brake hose (2).
Allow for fluid discharge.
3 -
Remove the small column mounting bolts (3) while
holding the nuts (4).
4 -
Remove the caliper.
