- Disassembly
Operations Photo
1 -

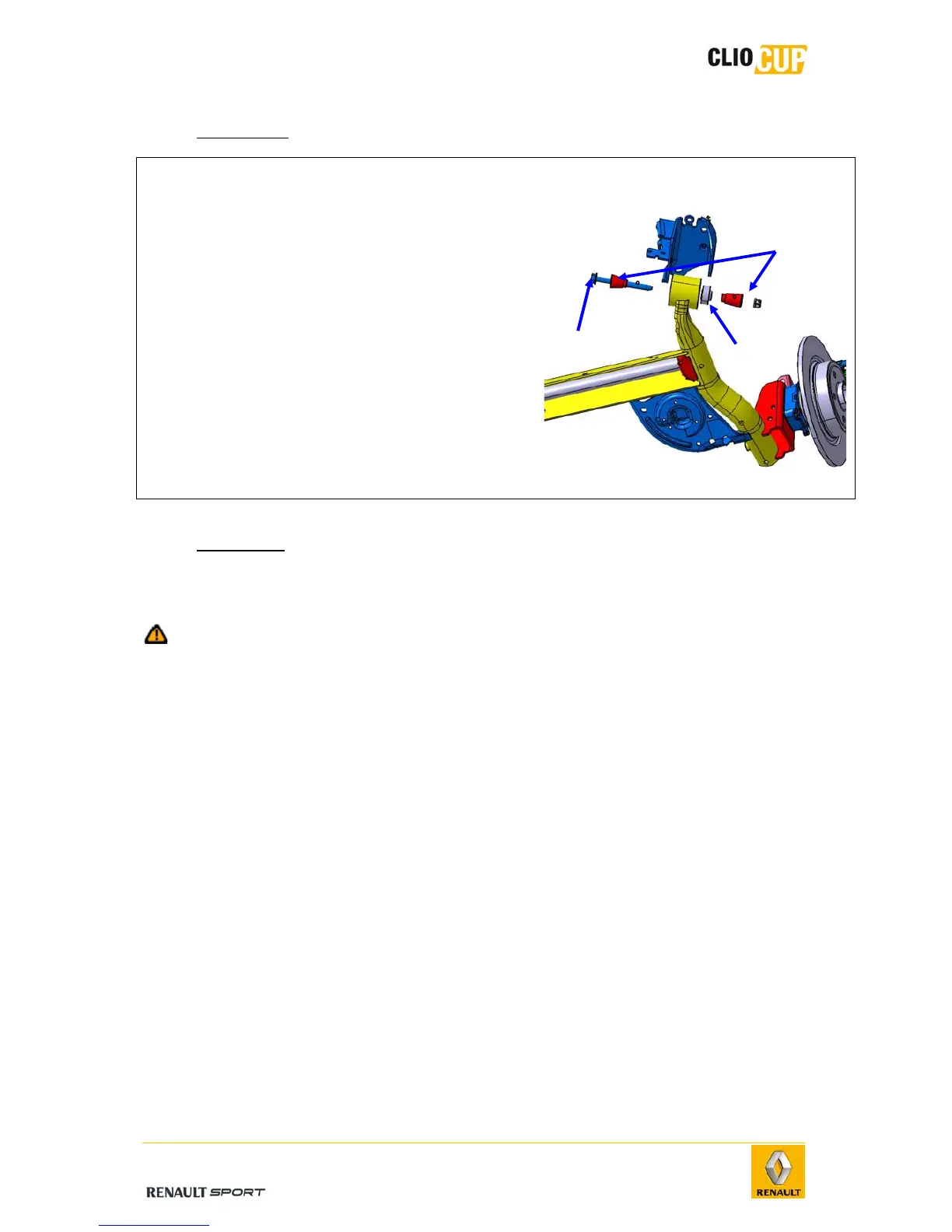

Remove the point A bolt (1) and collect the
spacers (2).
2 - Remove the snap ring.
3 - Remove the ball joint from point A (3).
- Reassembly
Perform the removal steps in reverse order.
Tighten the bolt (1) to 125Nm.
Follow spacer assembly direction (2): long spacer (Ref 77 11 160 125) inside
and short spacer (Ref: 77 11 160 124) outside.
