REAR SEATS: armrests
3.46

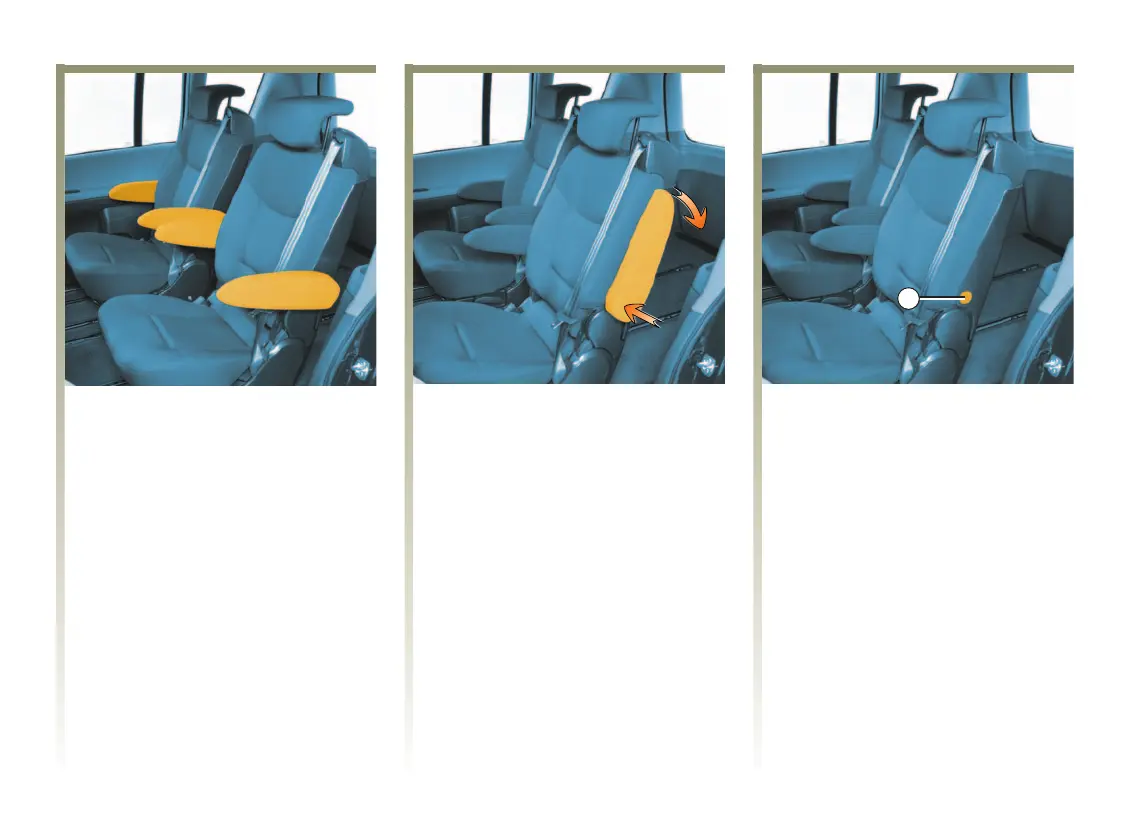

Rear armrests
On equipped vehicles, these can be
fitted to the rear seats on a
maximum of two seats per row.
To identify the correct side for
fitting the armrests, refer to the letter
inscribed on the armrest rotation
shaft:
- L for the left-hand side,
- R for the right-hand side.
Removing armrests
- Position the armrest vertically;
- push down on the armrest at the
rotation shaft and at the same time
tilt it back as far as possible;
- release the pressure to free the
armrest from its mounting and
remove the armrest;
- reposition the cover plate 1.
Refitting
- Take out the cover plate 1.
- position the armrest vertically (in
alignment with the seatback);
- press down on the armrest and at
the same time fold it up.
