PARKING AIDS
3
Driving - 289

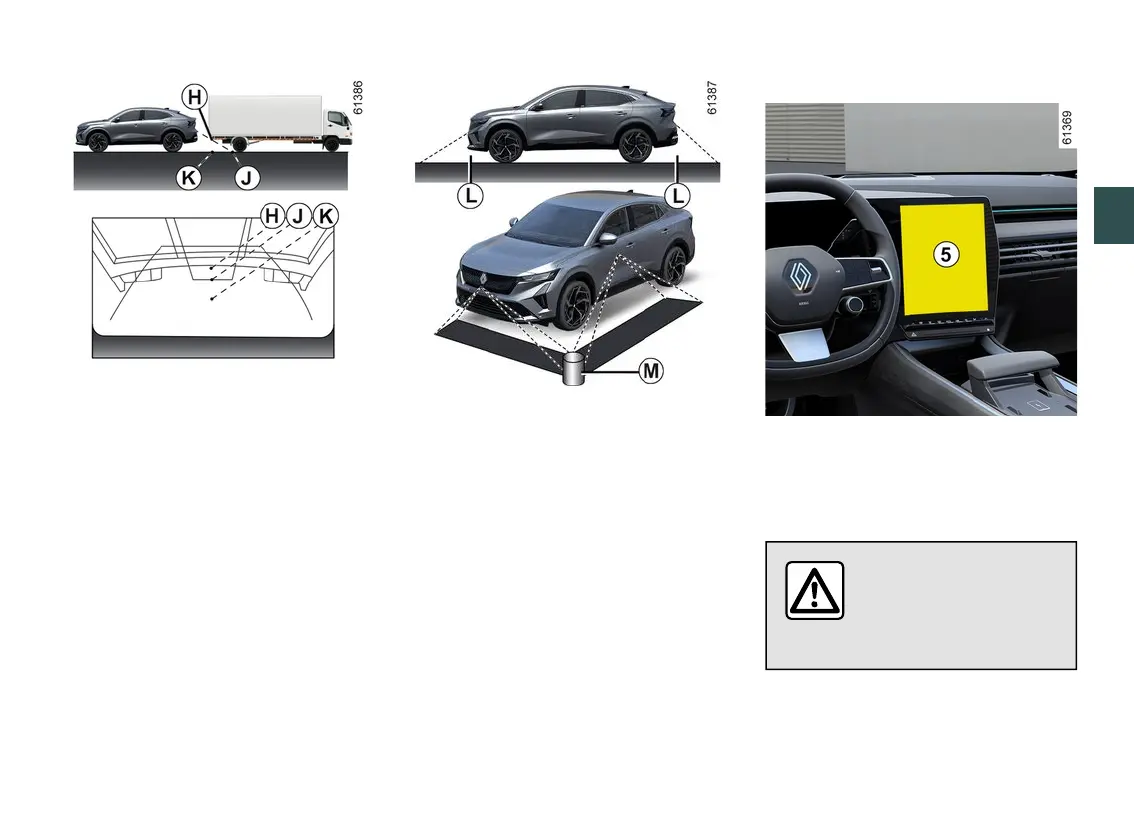

Driving or reversing towards a pro
truding object
Position H seems further than position
J on the screen. However, position H
is at the same distance as position K .
The trajectory indicated by the fixed
and mobile guidelines do not take into
account the height of the object. So
thereisariskthatthevehiclemaycol-
lidewiththeobjectwhenreversingto-
wards position K .
Limitation of the system operation
Thesystemisunabletodisplayob-
jects located in certain areas.
Inthefrontorrearviewmode,thesys-
tem cannot be used to view an object
in area L .
In bird's eye view mode, the system
cannot be used to view a large object
in area M (neartheedgeofthedis-
played area).
Adjusting the display
From the multimedia screen, when the
"360° camera" system is displayed,
youcanchangetheviews(e.g.re-
place the rear view by the panoramic
rear view).
For safety reasons, carry
out any adjustments
whilethevehicleissta-
tionary.
If the gear lever is in R position (on an
automatic gearbox) or in reverse gear
(on a manual gearbox), the following
views are available:
