5.09

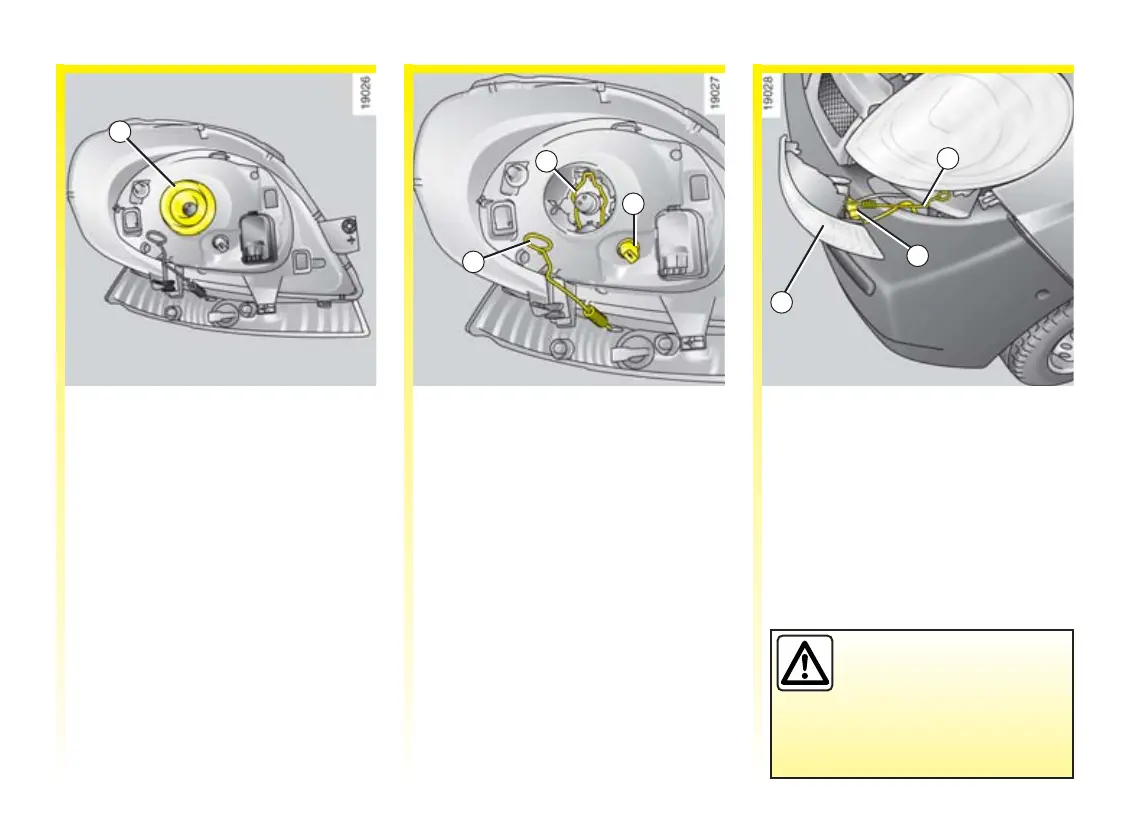

FRONT HEADLIGHTS: replace the halogen bulbs
Mainanddippedbeam
headlights
Remove cover 1.
Remove the connector from the
bulb.
Release spring 2 and take out the
bulb.
Type of bulb: H4.
Do not touch the bulb glass. Hold it
by its base.
Replace the bulb, replace the spring
and the connector and check that
cover 1 is replaced correctly.
Front side lights
Turn bulb holder 3 through 90°and
remove it.
Type of bulb: W 5 W.
Change the bulb and replace the
bulb holder.
Direction indicators
Pull spring 4 to remove direction
indicator assembly 6.
Remove assembly 6 from outside
the vehicle.
Turn bulb hold er 5 through 90° and
remove the bulb.
Bulb type: pear-shaped, bayonet
type P21 W.
Take care when working in
the engine compartment as
theenginecoolingfanmay
cut in at any moment
without warning.
