TRANSPORTING OBJECTS
Separation net A
If fitted, this can be used when
transporting animals or luggage to
isolate them from the passenger
section.
It can be positioned:
- behind the front seats;
- behind a rear bench seat.

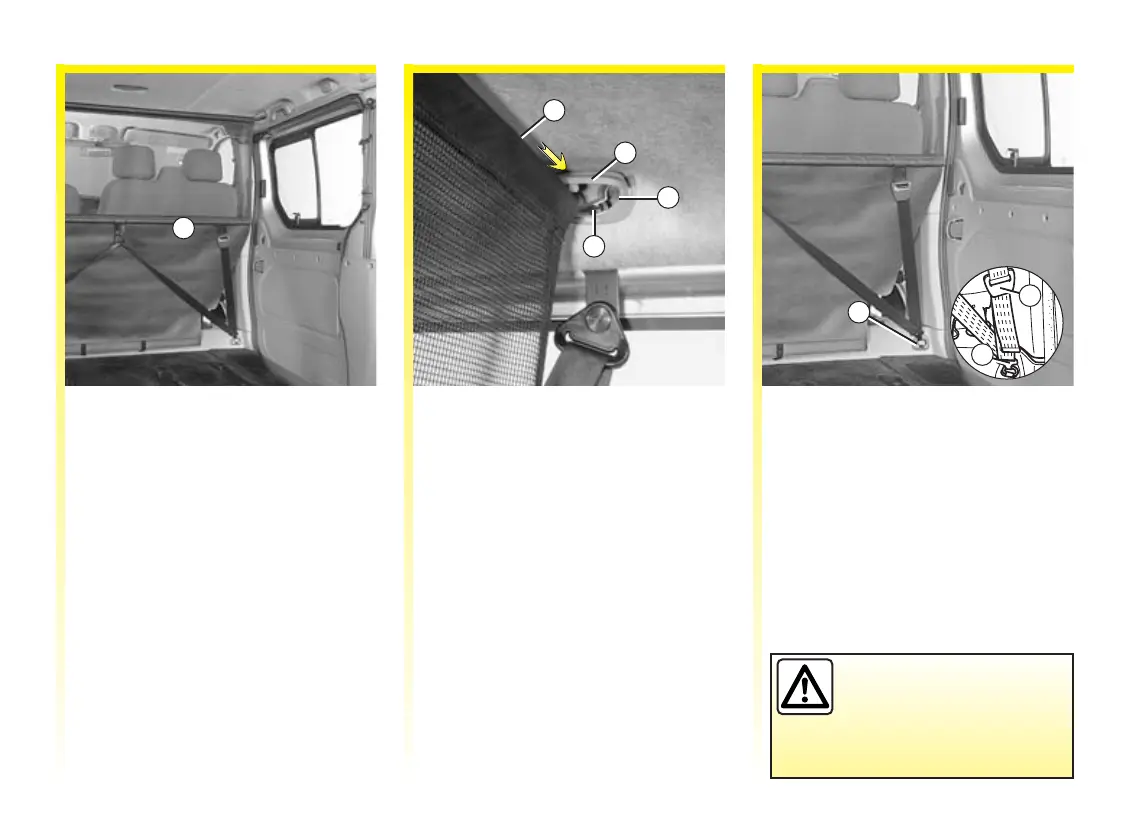

Fitting the luggage net behind the
front seats
Inside the vehicle on each side:
Upper mounting:
- lift and hold cover 1 to access the
mounting hole,
- insert upper rod 2 of the net into
largest section 3 of the hole,
- slide the rod into lower section 4
of the hole.
Lower mounting:
-attachhook5 of the luggage strap
onto ring 6 atthebaseofthebench
seat,
- adjust the luggage net so that it is
taut.
Removal
Loosen the strap by lifting
adjustment device 7 upwards.
Detach the belts.
Check that the end of rod
2 is resting against the
metalpartofthecover
and not the plastic part.
