Renesas RZ Series Quick Start Guide

RZ/N1D/S/L Group
Application Note
Preliminary document. Specifications in this
document are tentative and subject to change.
PROFINET Quick Start Guide
3. Project Setup
R11QS0010ED0143 Rev.1.4.3
Page 18 of 26
July 09, 2019

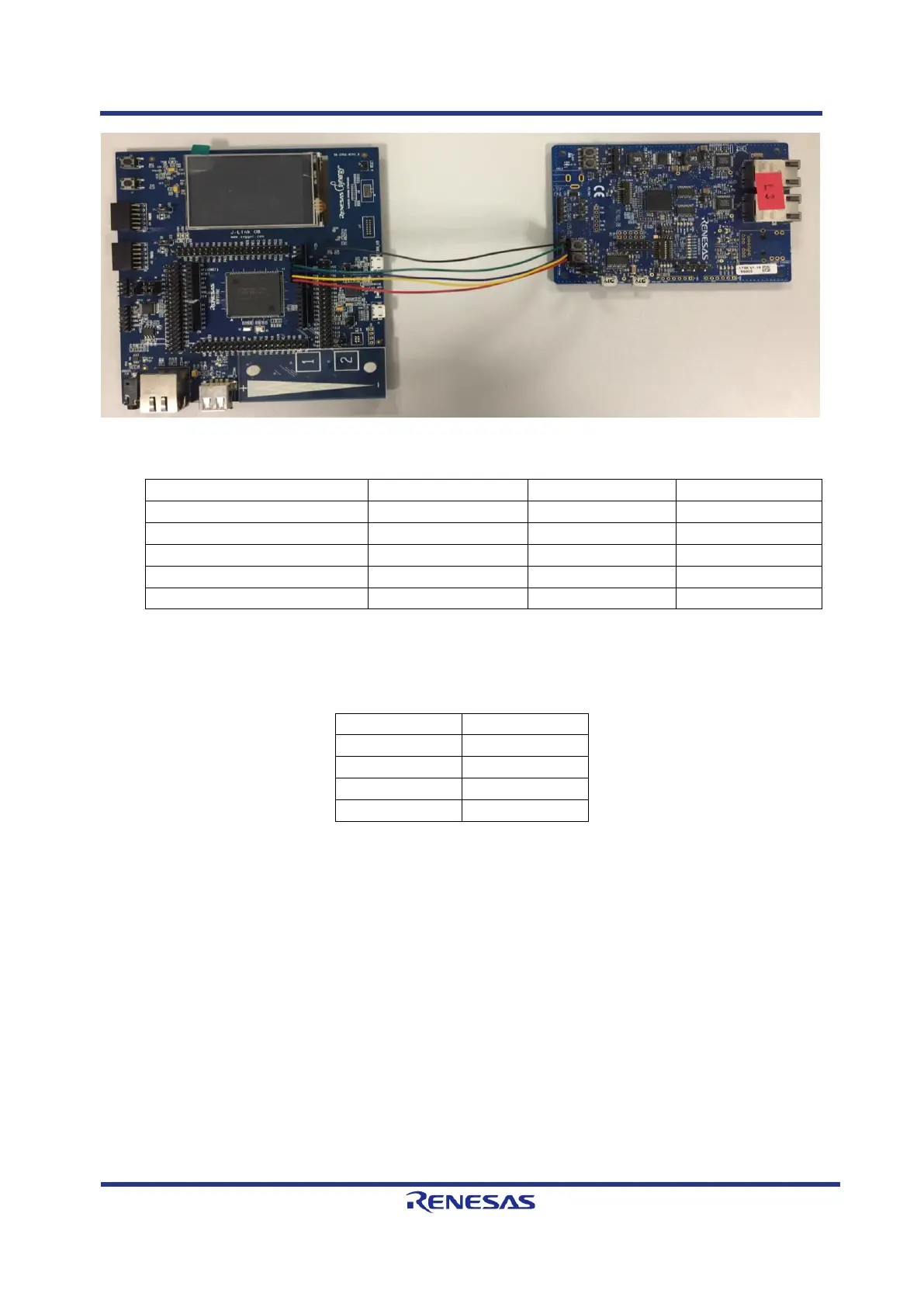

Figure 3-8: SPI connection of Synergy S7GS-SK (left) and RZ/N1L (right)
function
color
S7GS-SK
RZ/N1L
GND
Black
J24-7
CN20-5
SPI Clock
Green
J24-6
CN20-4
MISO
Blue
J24-5
CN20-3
MOSI
Yellow
J24-4
CN20-2
SPI chip select
Red
J24-3
CN20-1
Table 3-2: PINs for SPI usage
Please note the synergy quick start guide for setup the named core. By default, the RZ/N1L uses the SPI
channel 5 and the following GPIOs
GPIO
Usage
62
SPI clock
63
MOSI
64
MISO
65
SPI chip select
Table 3-3: GPIOs for SPI usage
Note:
The board supports only SPI mode 1 and 3. Please set the SPI mode to 3 by defining
GOAL_GLOB_MA_SPI_ID_0_MODE_3 in goal/goal_global/goal_global.h to 1.
#define GOAL_GLOB_MA_SPI_ID_0_MODE_3 1 /**< set SPI mode 3 on MA ID 0 */
