Renesas RZ Series Quick Start Guide

RZ/N1D/S/L Group
Application Note
Preliminary document. Specifications in this
document are tentative and subject to change.
PROFINET Quick Start Guide
4. Setting up a PROFINET
PLC (Tia Portal with S7-
1500)
R11QS0010ED0143 Rev.1.4.3
Page 20 of 26
July 09, 2019

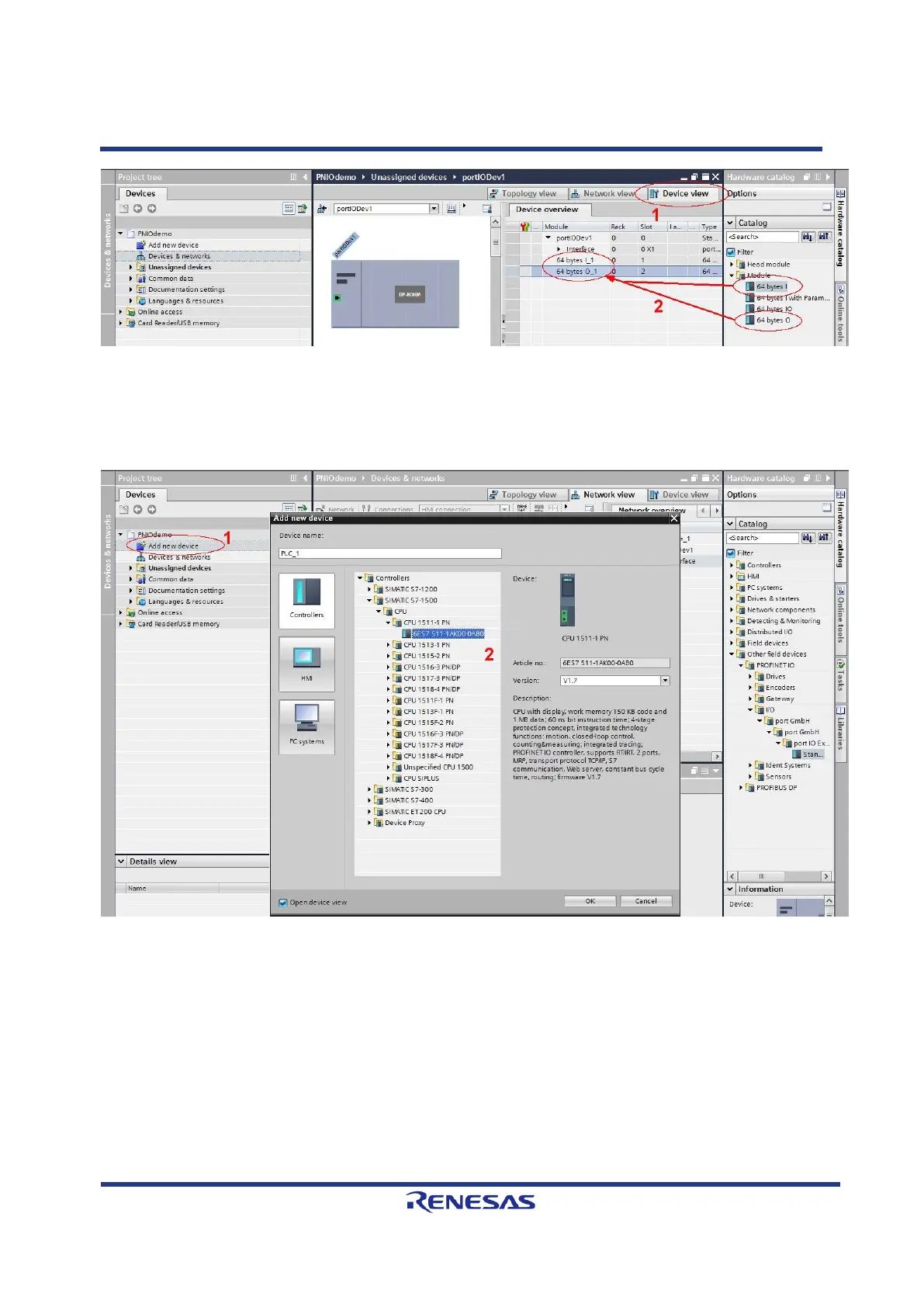

Figure 4-2: Add I/O modules
6. Add the PLC to the project (Figure 4-3).
o Double click on “Add new device”.
o Choose the device and the firmware version 1.7
Figure 4-3: Add the PLC to the project
7. Connect the devices (Figure 4-4):
o Change to “Network view”
o Connect the green marked Ethernet ports of the devices (drag & drop)
