RZ Family / RZ/G, RZ/A Series 3. Operation Specifications
R01UH0990EJ0101 Rev.1.01 Page 60 of 83
Jul 28, 2022
3.1.1 ADC Connector (CN1)
The RTK9743U11C01000BE contains a connector of ADC interface (CN1).
Figure 3.2 illustrates the layout of the connector pins. Table 3.1 shows the assignment of the connector pins.

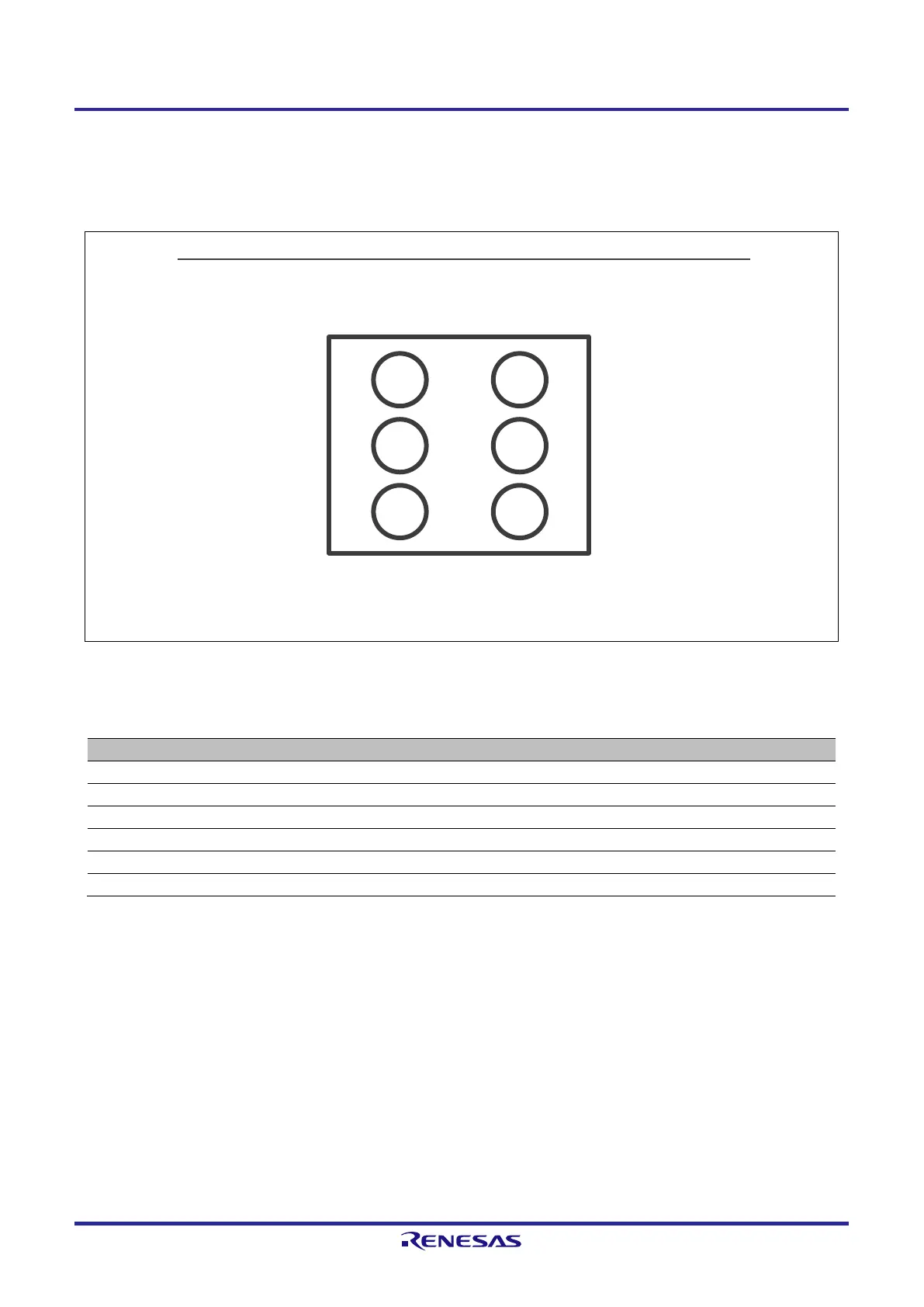

Figure 3.2 ADC Connector (CN1) Pin Layout Diagram
Table 3.1 ADC Connector (CN1) Pin Layout Table
Pin
Signal Name
1
PVDD
2
ADC_AVDD18
3
ADC_CH0
4
ADC_CH1
5
ADC_TRG
6
VSS
Top View
CN1
2 1
10 9
