5. Appendix
5.1 Type Name and Features of Each Board
This section describes the the type name and feature of each board here.
The SMARC Module Board is as follows. This picture is of the RTK9743U11C01000BE.

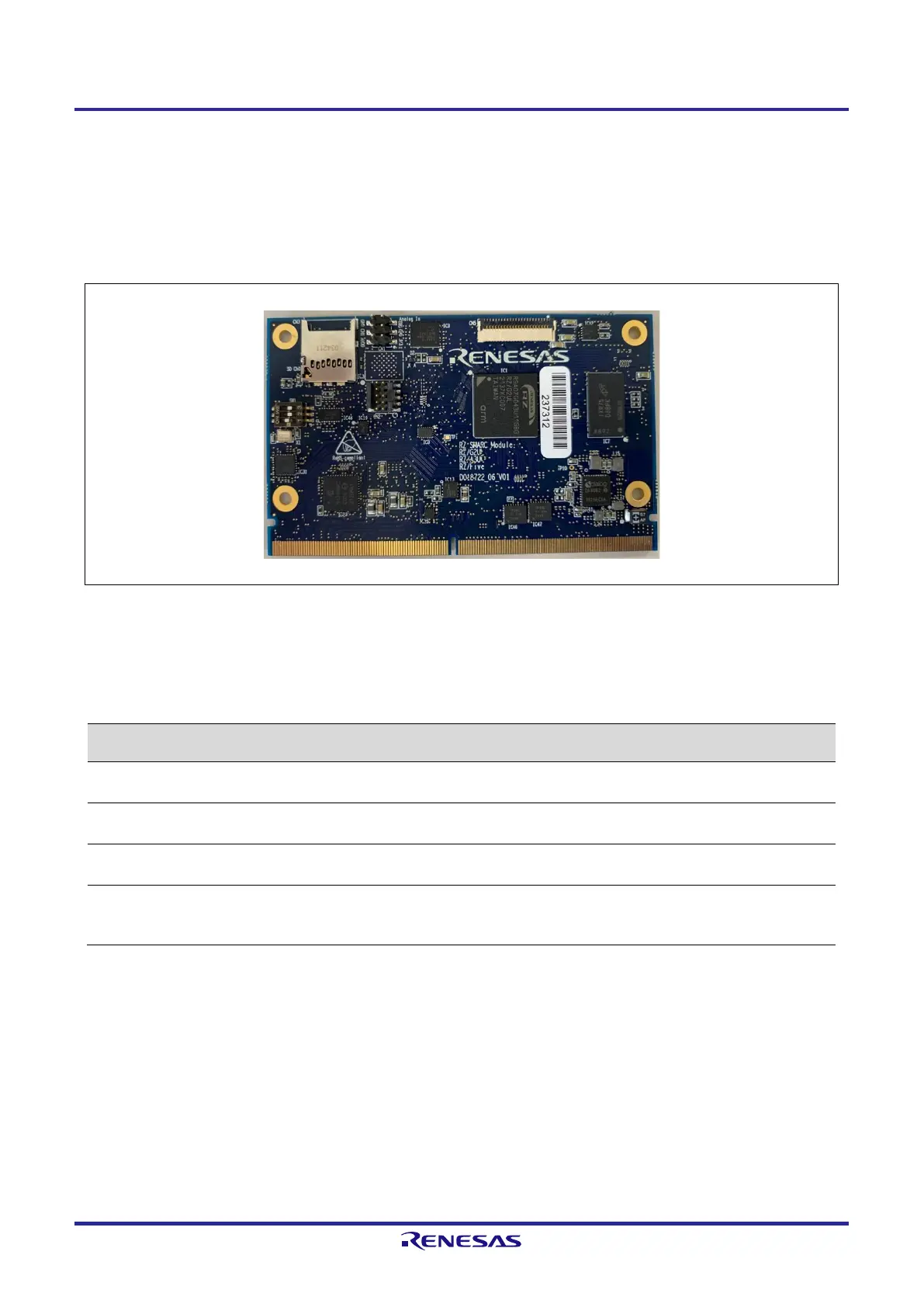

Figure 5.1 Top View of the SMARC Module Board
The SMARC Module Boards with RZ/G2UL, RZ/A3UL and RZ/Five are used common PCB layout and designed to be
pin-compatible and available for use.
Please refer to the section 2 “Functional Specifications” onwards for the actual functions of the board.
Board Name
Type Name
MPU
Memory
Configuration
Parallel to HDMI
Conversion Board
RZ/G2UL SMARC Module Board
RTK9743U11C01000BE
RZ/G2UL
(R9A07G043U11GBG)
QSPI flash memory
DDR4 SDRAM
Included
RZ/Five SMARC Module Board
RTK9743F01C01000BE
RZ/Five
(R9A07G043F01GBG)
QSPI flash memory
DDR4 SDRAM
Not Included
RZ/A3UL SMARC Module Board
QSPI Edition
RTK9763U02C01000BE
RZ/A3UL
(R9A07G063U02GBG)
QSPI flash memory
DDR4 SDRAM
Included
RZ/A3UL SMARC Module Board
OCTAL Edition
RTK9763U02C01001BE
RZ/A3UL
(R9A07G063U02GBG)
Octa RAM memory
Octa Flash memory
DDR4 SDRAM
Included
