RZ Family / RZ/G, RZ/A Series 3. Operation Specifications
R01UH0990EJ0101 Rev.1.01 Page 61 of 83
Jul 28, 2022
3.1.2 JTAG Connector (CN2)
The RTK9743U11C01000BE contains a connector of debug interface (CN2).
Figure 3.3 illustrates the layout of the connector pins. Table 3.2 shows the assignment of the connector pins.

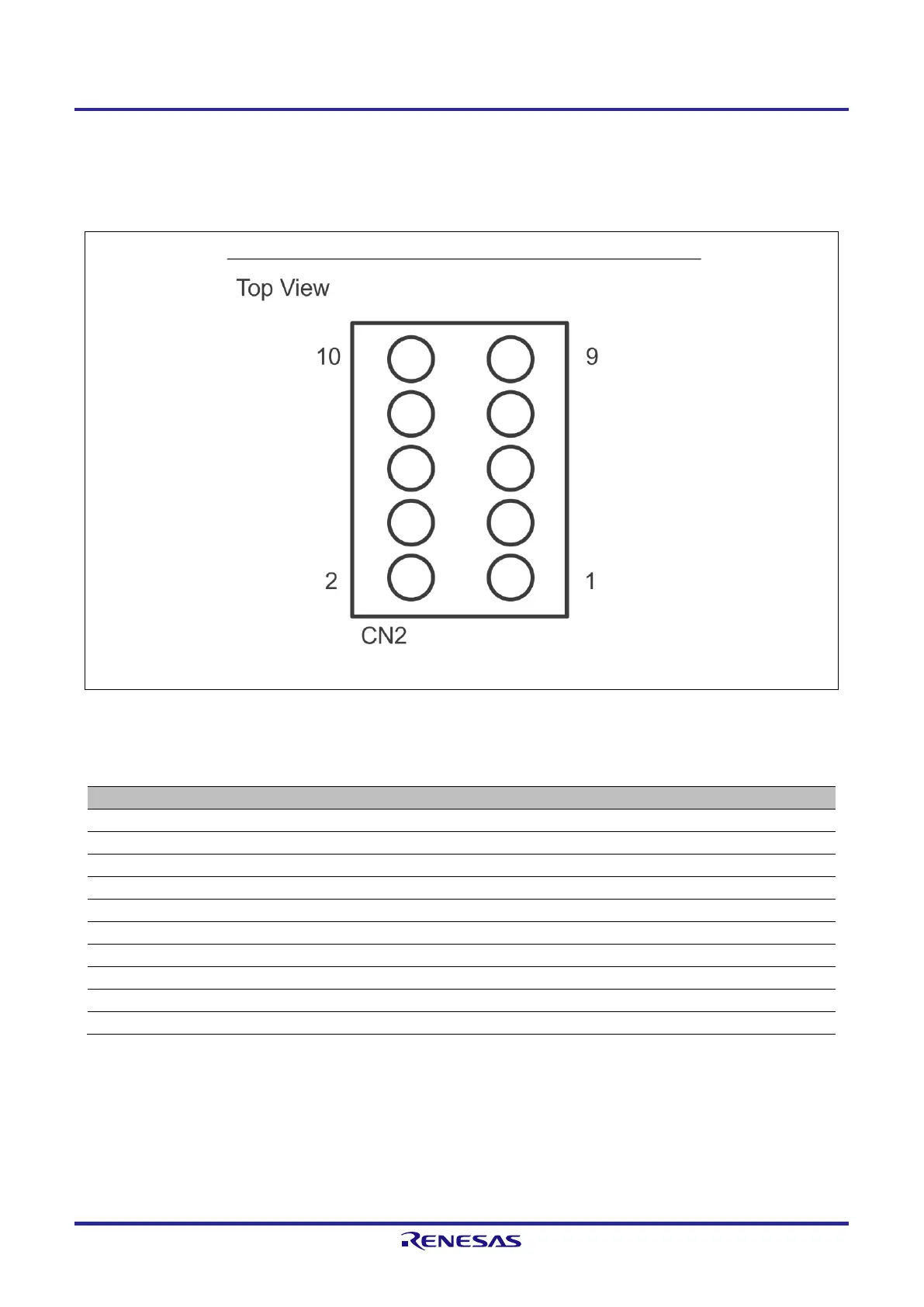

Figure 3.3 JTAG Connector (CN2) Pin Layout Diagram
Table 3.2 JTAG Connector (CN2) Pin Layout Table
Pin
Signal Name
1
PVDD18
2
TMS/SWDIO
3
VSS
4
TCK/SWDCLK
5
VSS
6
TDO
7
—
8
TDI
9
VSS
10
TRST#
