28
ATOM linear encoder system

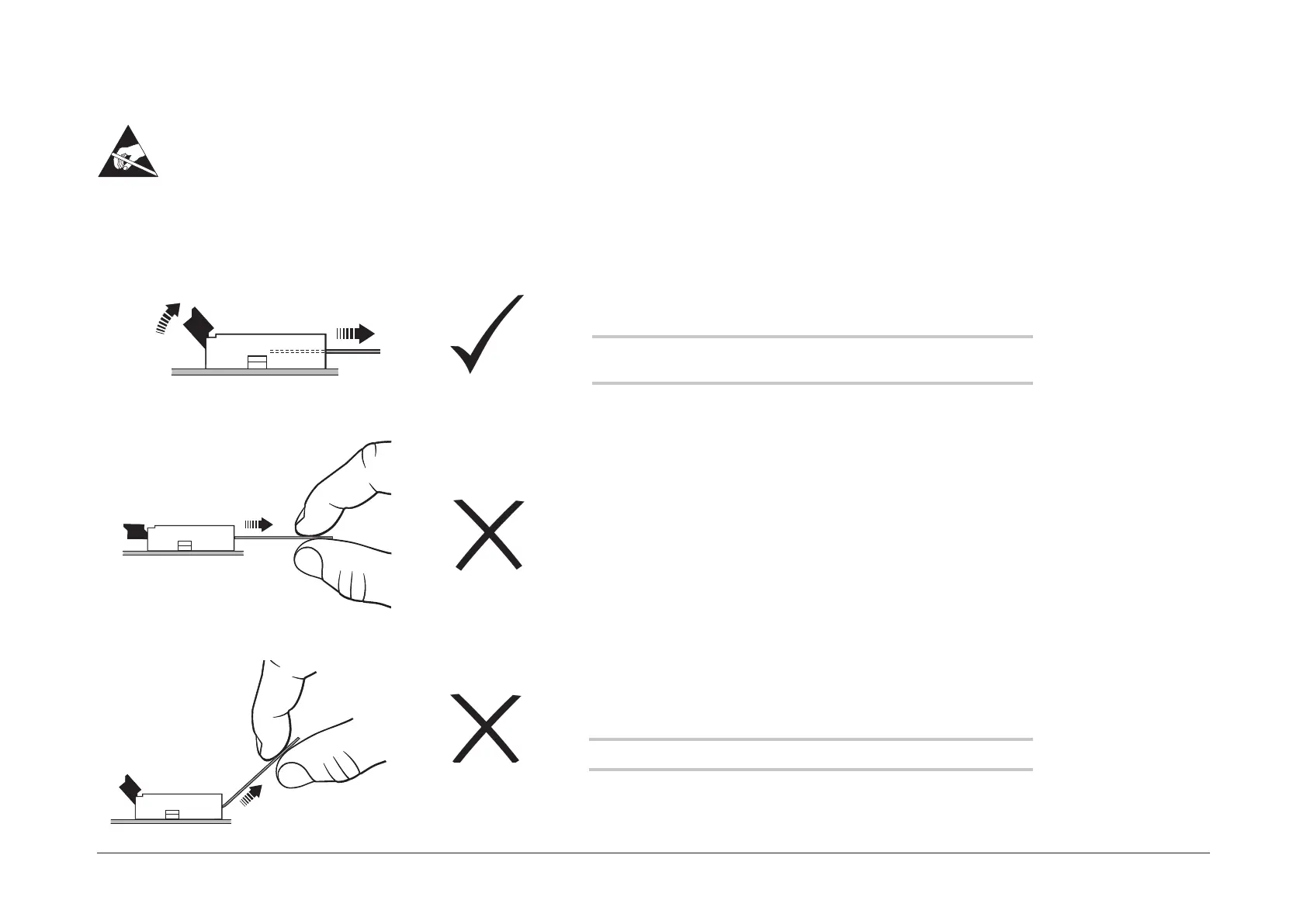

2. Ensure locking lever is fully open before removing the FPC cable.
3. Pull the FPC cable straight back to remove it.
CAUTION: Do not pull upwards or sideways as this may damage thereadhead.
CAUTION: Do not use tools such as screwdrivers or tweezers to open the
locking lever as this may cause damageto the connector or PCB.
Approved ESD precautions must be followed at all times during readhead electrical connection.
1. Placing your nger on the whole of the locking lever, slowly lift it up and away todisengage the locking mechanism.
Removing the FPC cable
