Renishaw LP2 - Machining Centres (Hard-wired Transmission)

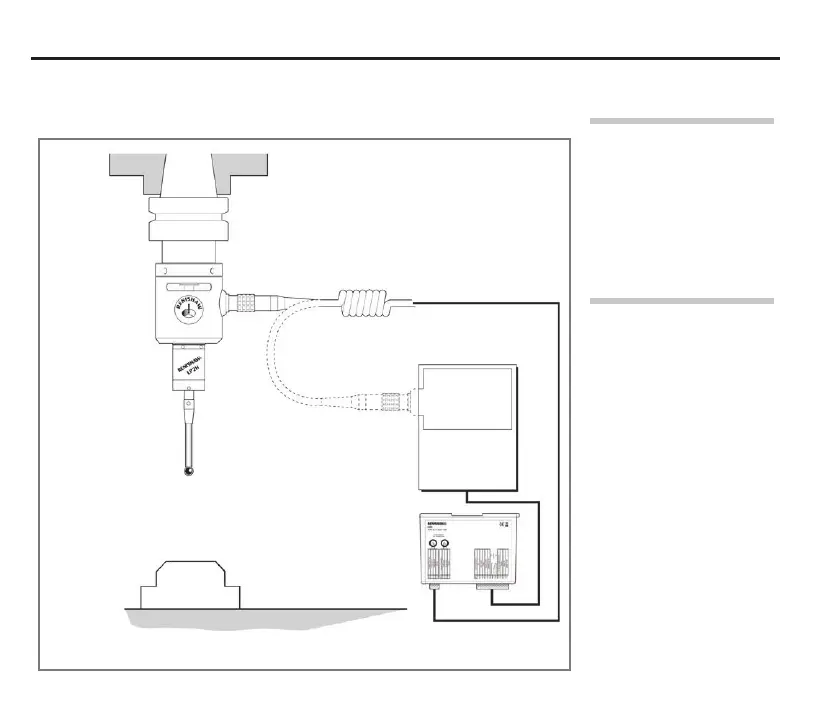

18 Typical LP2 probe systems
Machining centres (hard-wired transmission)
CNC
machine
controller
Shank adaptor
Workpiece
LP2 probe
Stylus
MA2 probe
holder
CNC machine
spindle
HSI (shown),
HSI-C or MI 8-4
interface unit
Optional
spindle rotation
inhibit
Cable
WARNING: The probe
should not be rotated
(spun) by the machine
when the curly cable is
connected, as persons
may be injured by ying
cable or entanglement.
