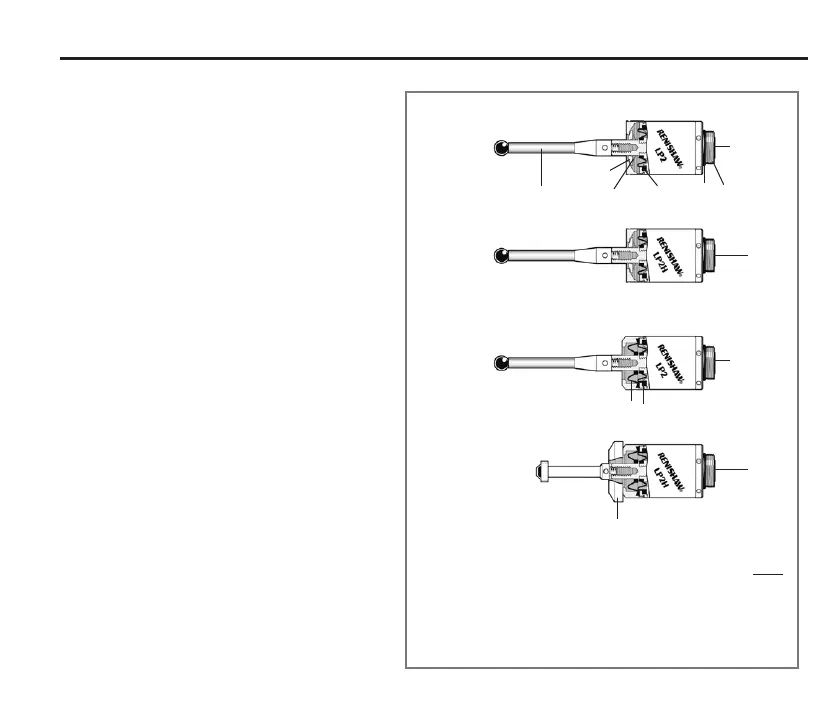

5LP2 probe types
There are four versions of the LP2 probe.
Each version is best suited to particular
applications.
LP2 – For normal setting/inspection. The
metal eyelid protects the diaphragm in a hot
chip and coolant environment.
LP2H – With higher stylus pressure for long
or heavy styli, or where there is excessive
machine vibration.
LP2DD – LP2HDD – The double diaphragm
(DD) arrangement is recommended for
grinding machines and other applications
with particle-laden coolant. The LP2HDD is a
version with a higher stylus spring pressure,
similar to the LP2H.
1. Stylus – M4 thread
2. Metal eyelid
3. Spring
4. Diaphragm
5. Rear O-ring
6. M16 thread
7. Stylus spring pressure adjustment
8. Swarf deector – essential for LP2DD
and LP2HDD when continually exposed
to hot chips.
*
Stylus spring pressure adjustment not available
LP2DD probes are available as original equipment,
or existing LP2 probes may be converted to the DD
standard using a conversion kit.
4
4
7
*
1
2
3
4
5
6
7
*
8
LP2
LP2H
LP2DD
LP2HDD
