11
Dimensions given in mm (in)

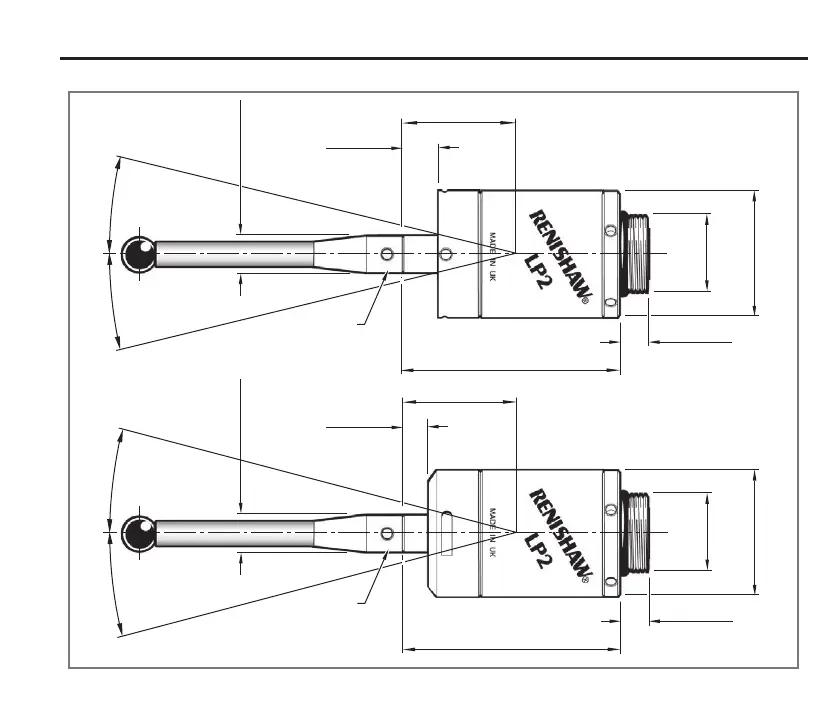

Dimensions
LP2 – LP2H
LP2DD – LP2HDD
7.5 (0.30)
6.5 (0.26)
40.8 (1.61)
Ø25 (0.98)
20 (0.79)
Ø7 (0.27)
M16 × 1
12.5°
12.5°
M4 stylus
4.8 (0.19)
6.5 (0.26)
40.8 (1.61)
Ø25 (0.98)
20 (0.79)
Ø7 (0.27)
M16 × 1
15°
15°
M4 stylus
