R 17A User’s Manual – Page 74
3. Components and connectors

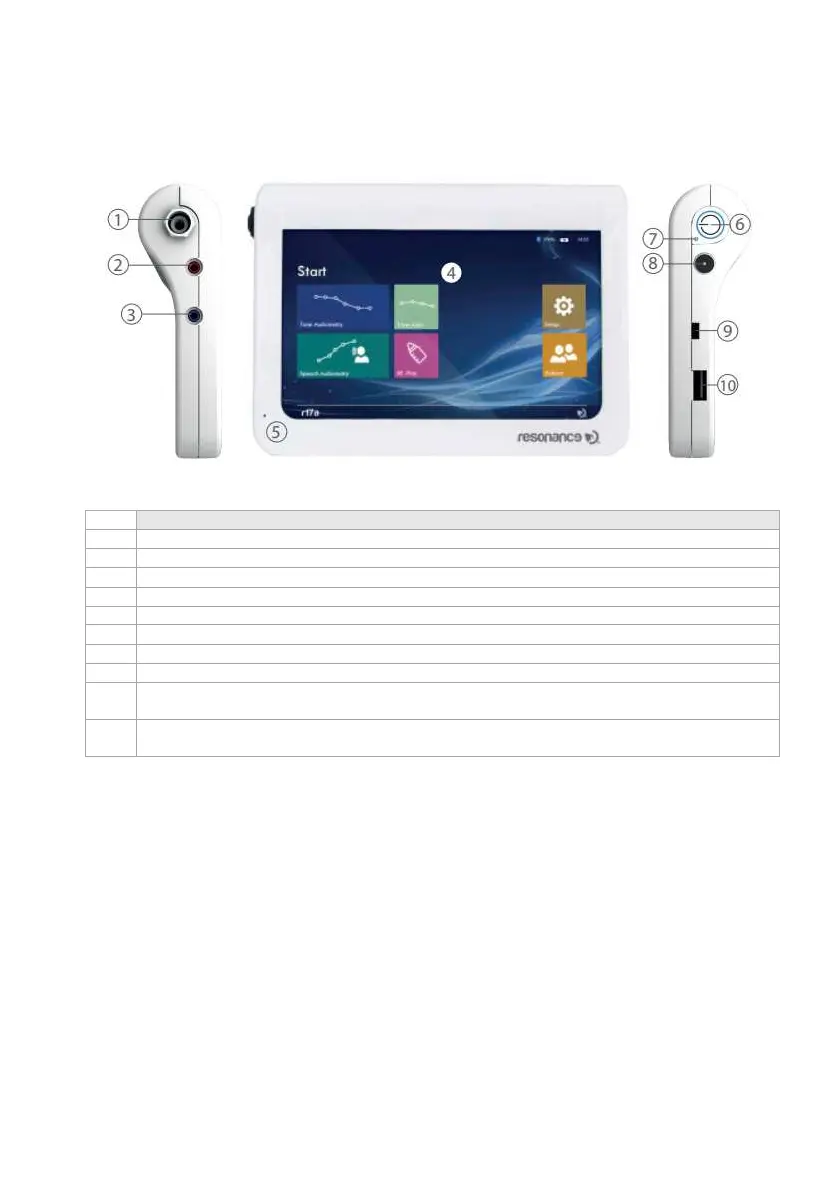

Description
1 Bone vibrator plug
2 Right transducer plug
3 Left transducer plug
4 7” TFT Resistive touch screen display
5 Integrated microphone: used for communication between operator and patient
6 Main switch
7 Led: shows that battery is charging
8 Socket for external medical power supply
9 Patient response push button mini usb plug.
This connector can be used for wired data transfer
10 USB Host port for connection of pen drive (for software) or external keyboard. Wi-Fi dongle
and otoscope
