R 17A User’s Manual – Page 86

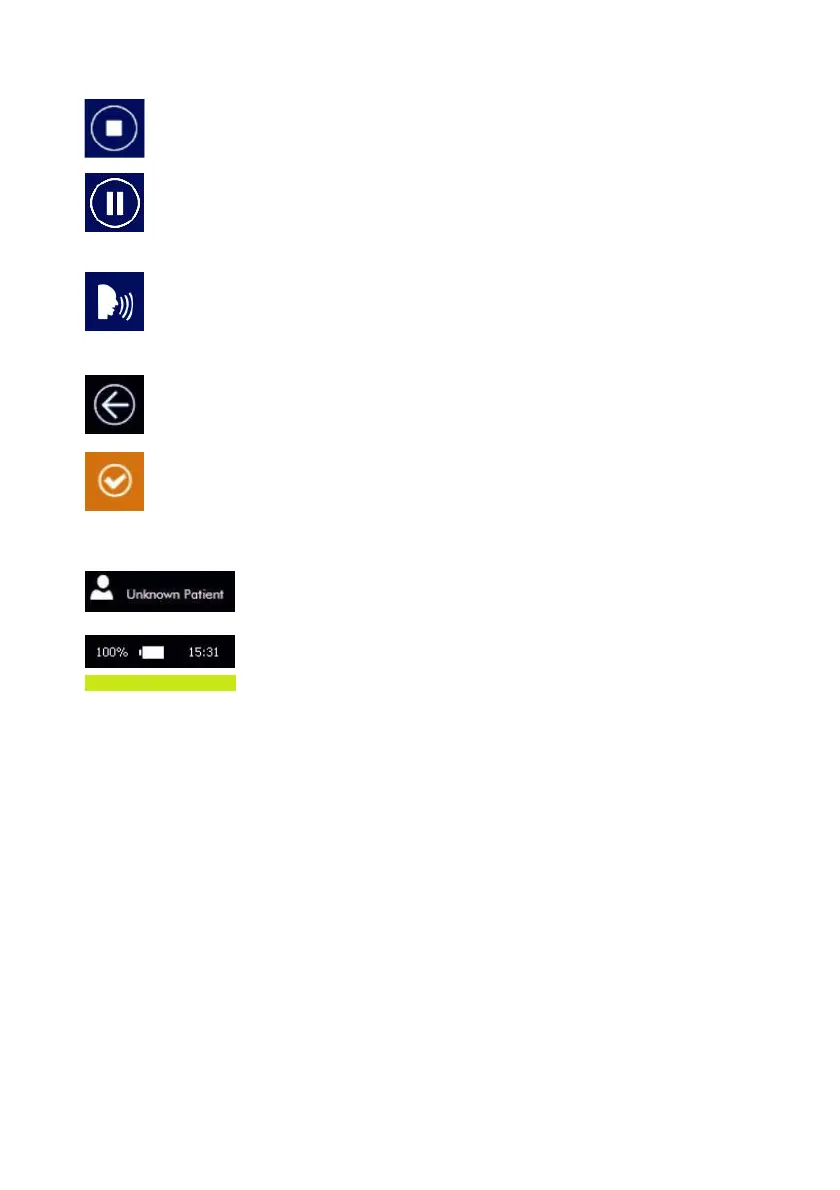

Press the STOP icon to stop the test.
Press the PAUSE icon to temporarily stop the test.
Communicate to the patient
TALK OVER button allows the user to talk to the patient via the transducer. A microphone is
integrated in the device.
Exit and Save
Pressing the EXIT button, a dialog box will pop up and ask if you wish to save and/or print the
test out on the thermal printer.
Press YES or NO. If answer is YES, R17A will show patient database page to select the patient
to be associated to the test performed, confirmation is required pressing this button. Please,
refer to section 6 of this user manual for further information about the patient database
management.
Information shown on the display
Indicates the name of the patient undergoing the examination, as previously
selected. Touch the icon to get direct access to patient database.
Indicates battery residual charge and current time.
When the patient presses the respons pushbutton a green line appears on the
display to highlight the answer.
