Retsch SK 300 - Inserting the Grinding Insert; Inserting the Rotor

Operating the Device
34
6.6.1 Inserting the Grinding Insert

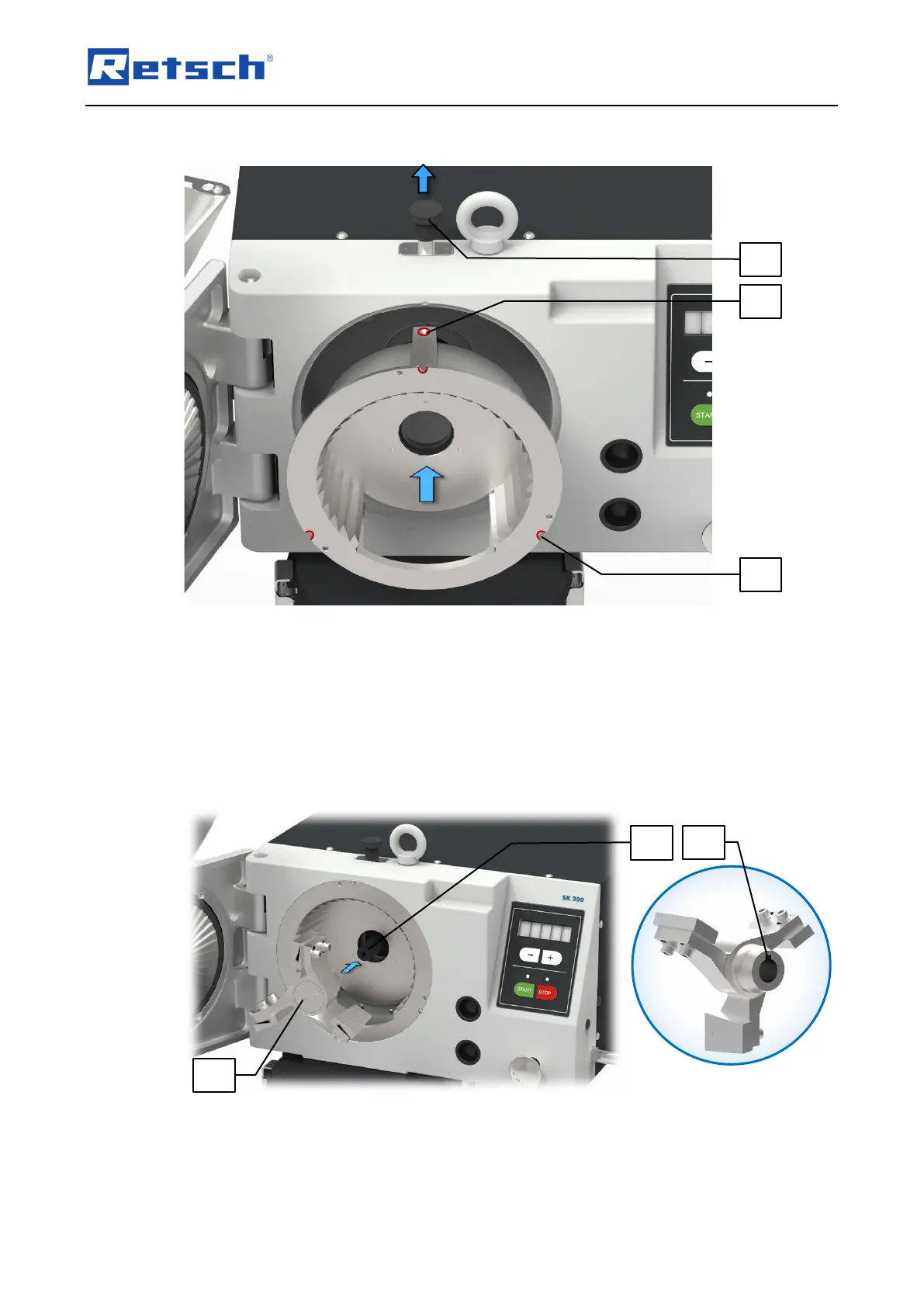

Fig. 17: Inserting the grinding insert
 Pull up and hold the locking pin (E).
 Align the grinding insert so that the opening (ME1) for the locking pin is at the top, and the
three recesses (ME2) are aligned with the corresponding cylinder pins.
 Slide the grinding insert into the grinding chamber.
 Release the locking pin (E) to lock it into the opening (ME1) of the grinding insert.
6.6.2 Inserting the Rotor
Fig. 18: Inserting the rotor
 Grasp the rotor (RO) so that the rear hub (RO1) is aligned properly with the feather key (PF)
on the motor shaft (MW).
ME2
E
ME1
MW
RO1
RO
