RE 91 401/09.00 | A2FO Mobile Hydraulics | Bosch Rexroth AG 7/20

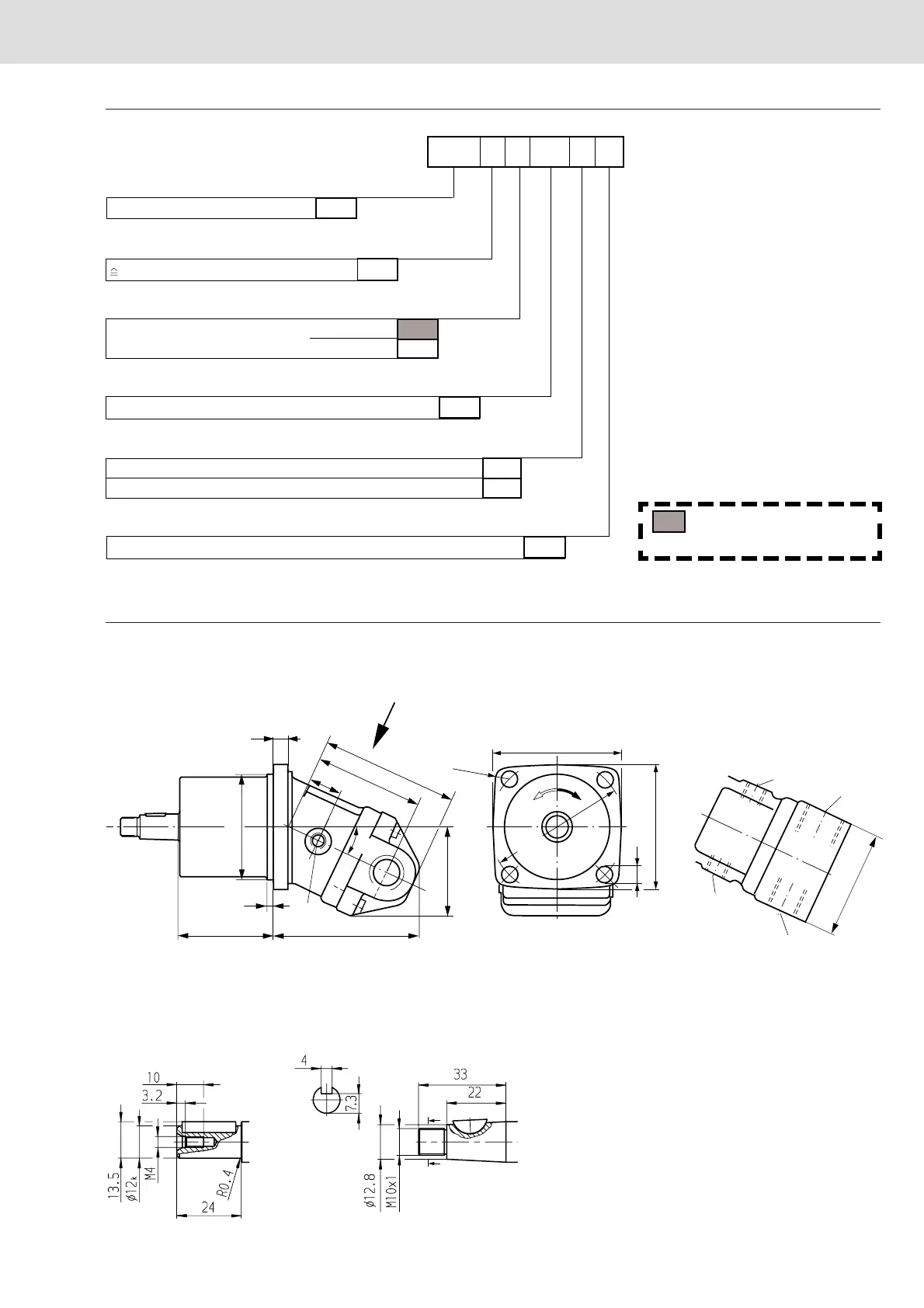

Unit Dimensions, Size 5
Detail Y
p
N
= 315 bar
p
N
= 210 bar
Shaft ends
Connections
B, (A) Service line ports M18x1,5
S Suction port M22x1,5
T Drain port M10x1, both sides
A2F 5 6.0 7
Additional instructions in text form
Seals
The fixed pump A2F 5 is equipped with NBR-
(nitril-caoutchouc) seals in standard design.
In case of need FKM- (fluor-caoutchouc) seals
please indicate when ordering in clear text:
"with FKM-seals"
Axial piston unit
Bent axis design, fixed displacement A2F
Size
Displacement V
g
(cm
3
) 5
Direction of rotation
Viewed on shaft end clockwise R
anti-clockwise L
Series
6.0
Shaft end
Parallel shaft with key DIN 6885 B
Tapered shaft with spigot and spring washer DIN 6888 C
Service line connections
Threads at side, metric 7
= preferred program
(preferred types see page 18)
taper 1:10
Ordering Code / Standard Program - Size 5
B Parallel shaft with
key A4x4x20
DIN 6885
C Tapered shaft with spigot
and spring washer 3x5
DIN 6888
51 80
4
74,5
58,5
17,5
8
T
T
T
S
B (A)
ø60
48,5
62
h8
25°
70
R 6
70
6,4
75
±0,1
Y
Before finalising your design, please request a certified drawing.
Note:
For anti-clockwise rotation port
plate is rotated through 180º
