RGBlink VENUS X1 PRO-E - Rear Panel Connectivity

Chapter 1: Your Product
VENUS X1PRO-E User Manual
8

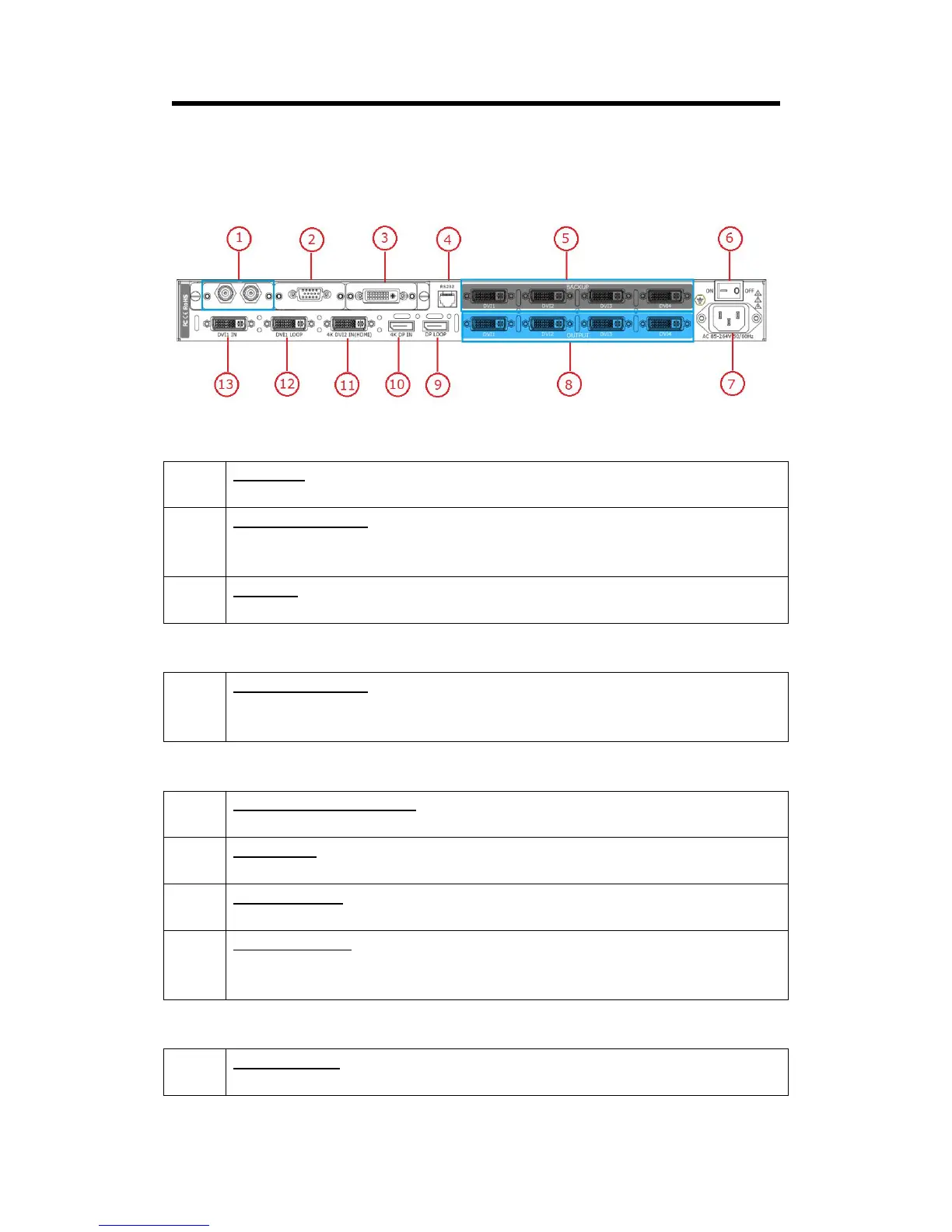

1.2.1 Rear Panel
Input Connectors
13
DVI-I DVI
Standard DVI signals can be input, compatible HDMI1.3
11
4K DVI2 IN(HDMI)
Standard DVI and 4K DVI signals can be input, compatible HDMI1.4 & 4K HDMI
signals.
10
4K DP IN
Standard DisplayPort and 4K DisplayPort signals can be input.
Input Option Slots
1.2.3
Input Optional Slots
Range of inputs are available for user fitting.
DVI\SDI\HDMI\VGA\USB\CVBS\DP
Output Connectors
5
DVI1-DVI4 Output Backup
4 x DVI output, connect to the monitor.
8
DVI-I – DVI
4 x DVI output, connect to the monitor or LED display which has DVI interface.
9
DP Loop Output
Connect to the DP input of the next VENUS X1PRO-E or the device with DP input.
12
DVI Loop Output
Connect to the DVI input of the next VENUS X1PRO-E or the device with DVI or
HDMI input.
Control Connectors
4
RS232 Interface
Use for system upgrade or remote control by windows software.
