Chapter 1: Your Product
VENUS X1PRO-E User Manual
10

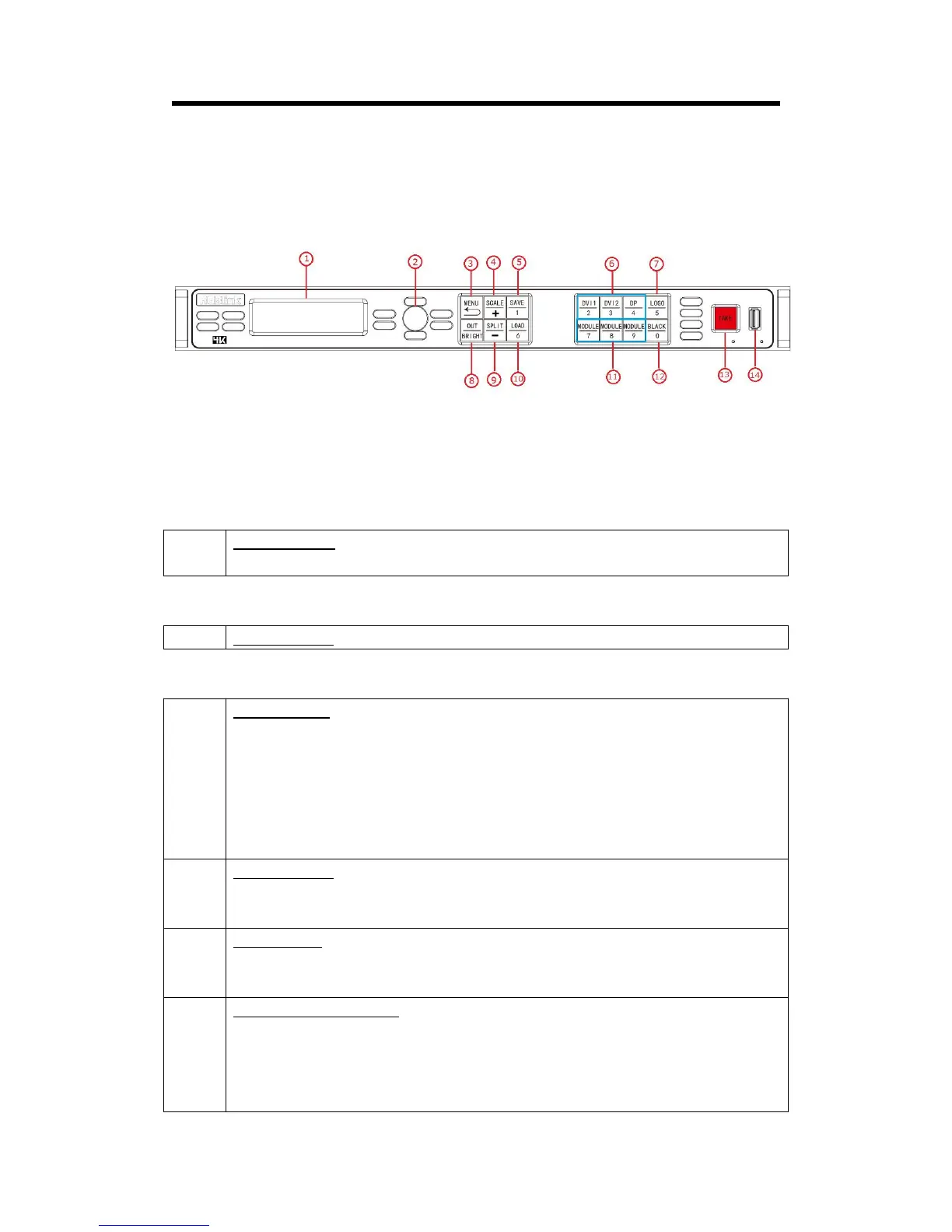

1.2.2 Front Panel
Display
1
OLED Display: Displays current status of the product, and for feature selections
provides interactive choices in conjunction with buttons on the front panel.
Multi-Function Buttons
2
Rotary Button: This button used for menu selections and confirmation.
Illuminated Buttons
3
MENU Button
Menu and back button.
Push the button again will return to the last level menu or exit the menu.
Push the button twice to enter the effect switch function menu.
Push the button for 3 seconds will lock the front panel, and push the button for 5
seconds to unlock.
Push the MENU and TAKE button for 3 seconds will switch the language.
4
SCALE Button
This button used for size and position adjusting.
It reused as the stop and play button for the USB signal.
5
SAVE Button
Save all current settings with the VENUS X1PRO-E to 1 of the 36 available slots.
Additionally, this button is used for direct numeric entry for numbers 1.
6
Dedicated Signal Buttons
For each of inputs on the back panel a dedicated back-lit buttons are provided. When lit,
the signal is selected for use, when red light is flashing, signal is in preview or the signal
is not available.
Additionally, each button is numbered and can be used as direct number entry when
