1.2.1Handle

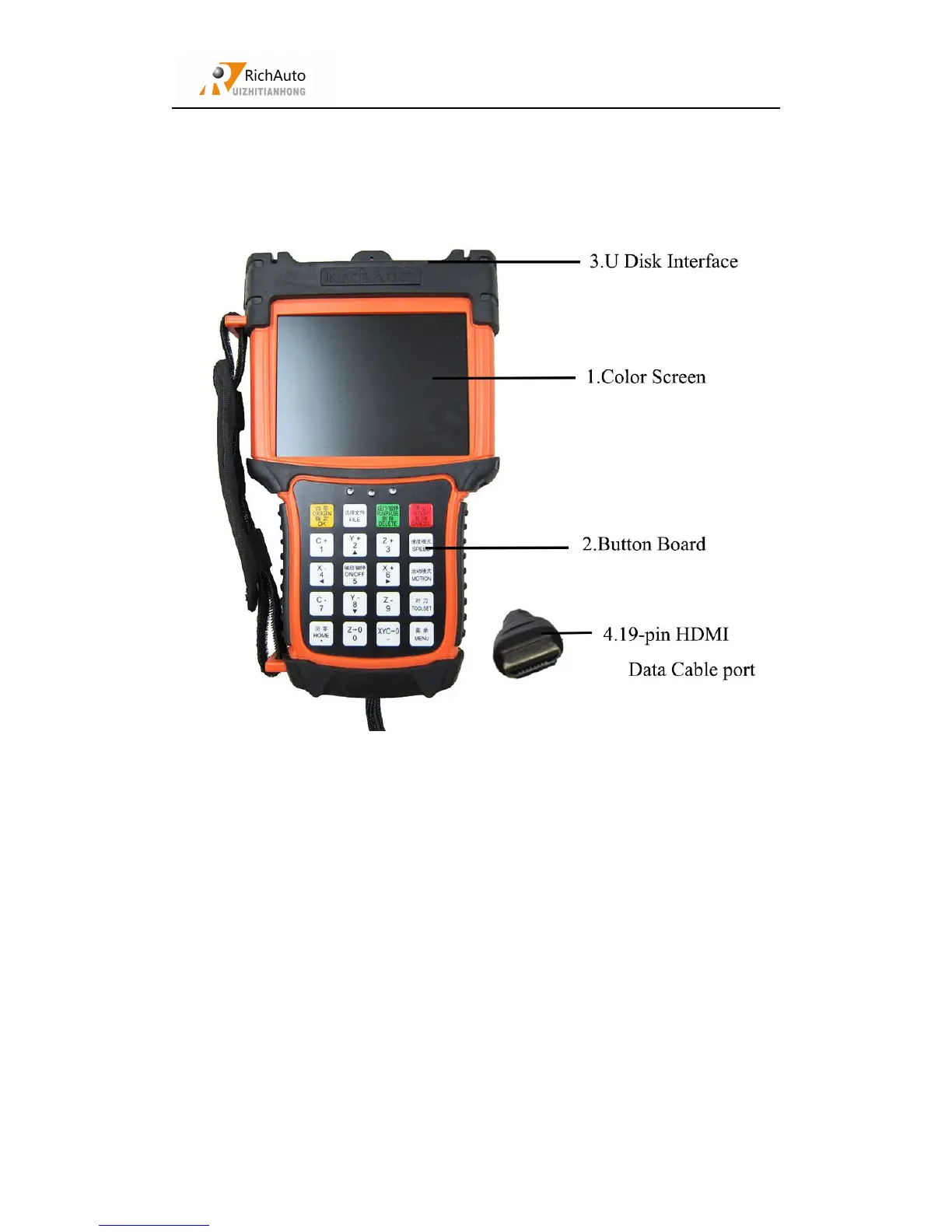

As shown belowincluding 4 parts:
1) Color screen5-inch color screento display the machine motionsystem
settings and other information.
2) Button boardContains 20 buttons to input system parameter information
and operate the machine.
3) U Disk Interface: The port of U diskFAT16/32 and the memory card.
4) 19-pin HDMI Data Cable port: The port of 19-pin data cableit connect the
handle with the interface board to realize controlling the machine.
1.2.2 Interface board
As shown belowincluding 5 parts:
