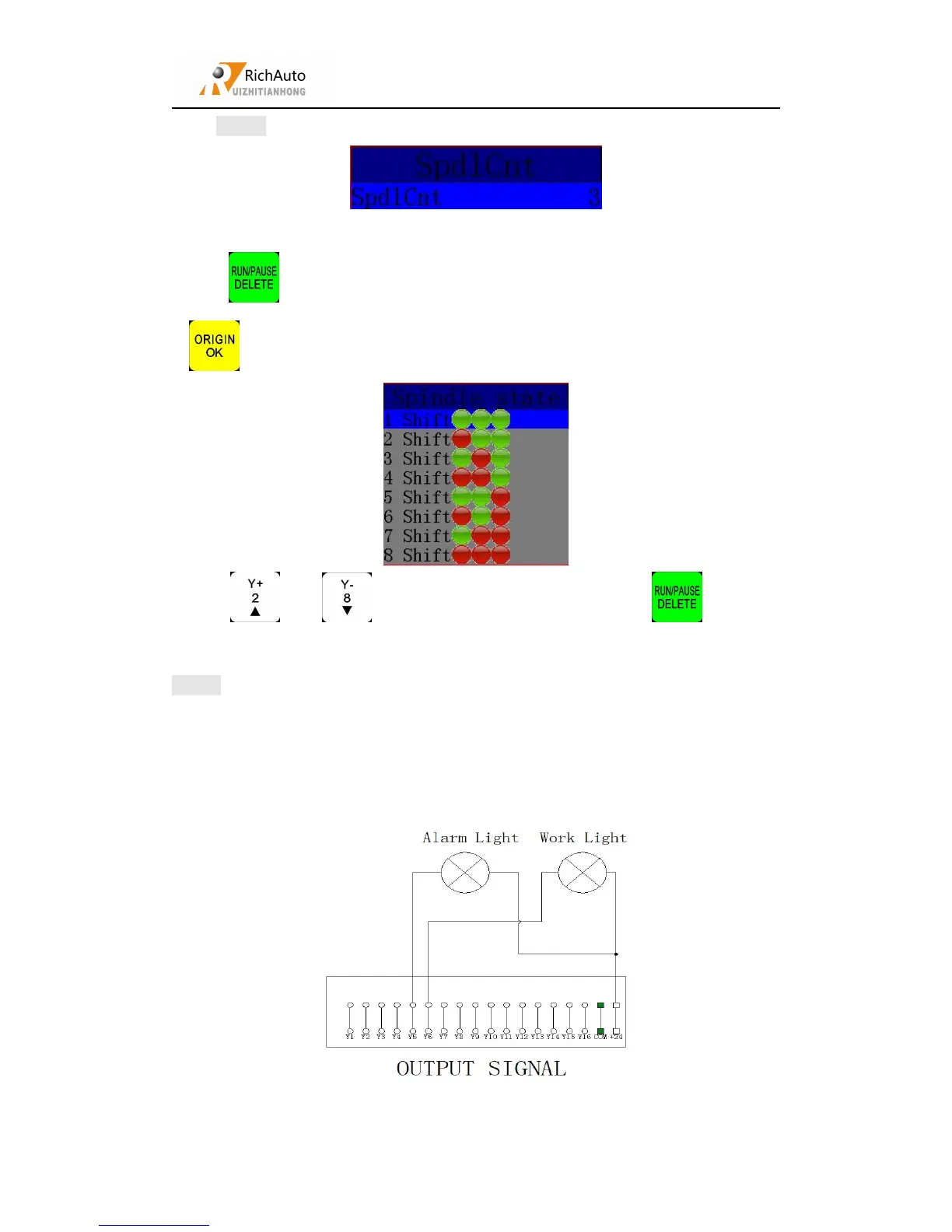

Setting：Enter“Spindle State”，screen shows：
SpdlCnt=Spindle Count
Press“ ”，input the number 3，change Spindle Count to 3，and then press
“ ”，screen shows：
Press “ ”、 “ ”to move cursor up and down，press“ ”，you can
change the indicator light color，like above picture.
NOTE： FWD and DCM has Connected in Parallel in some inverters, plesae do not
need to connect Y1 (S0) in such situations, you only need to connect DCM with GND
of interface board, without having to reset the spindle gear.
Definable ports wiring：
eg：Y5-Alarm Light signal & Y6-Work Light signal
ANALOG：
