Ricoh Aficio SP 5210DN - Page 34

SH-P1 Training
34
Slide 34
 This machine uses two cooling fans and an exhaust fan.
 The CPU controls these fans referring to the data from the transfer
thermistor [2] to prevent overheating.

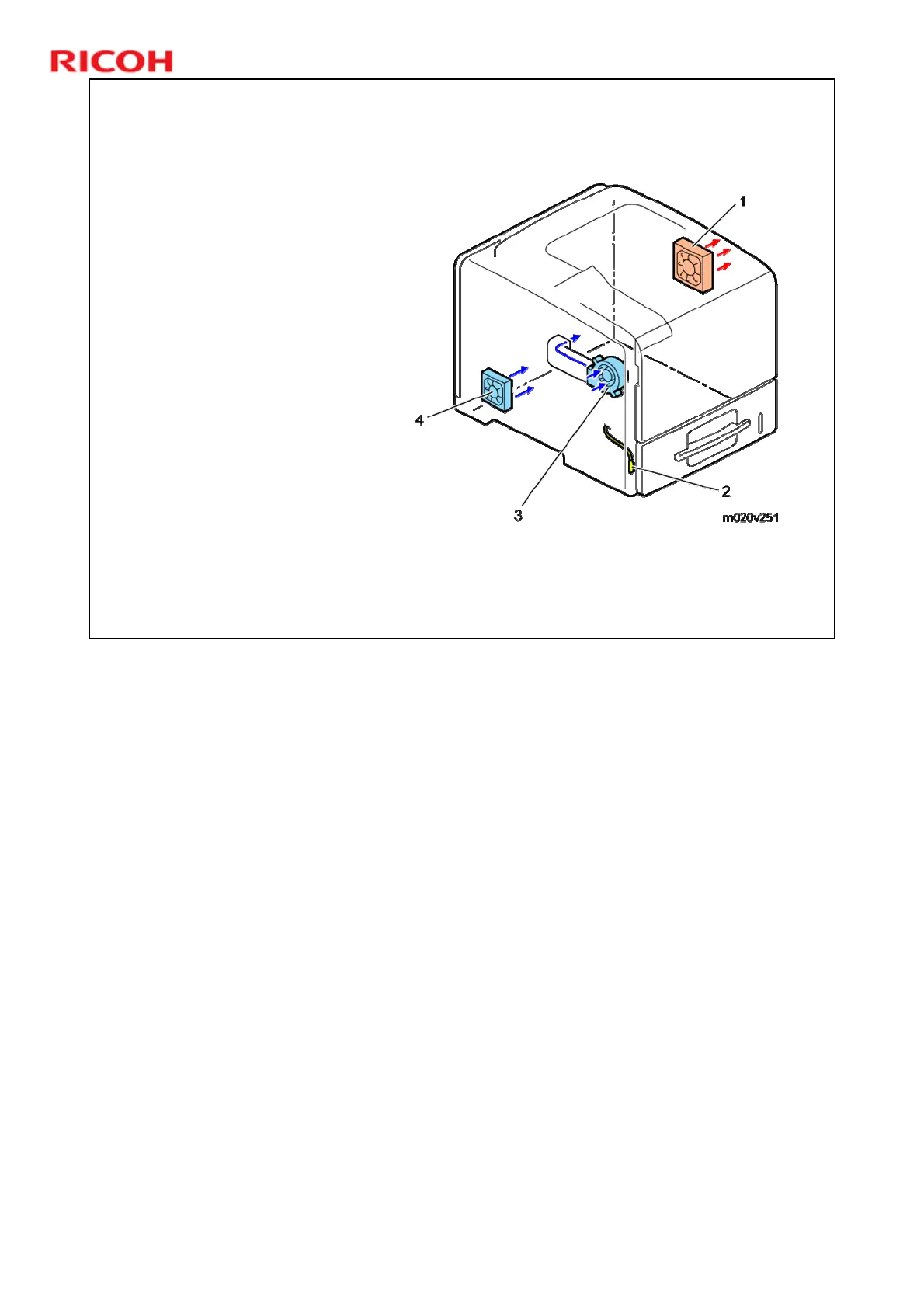

Machine Ventilation
1. Exhaust fan
2. Transfer
thermistor
3. AIO fan
4. PSU fan
No additional notes.
