Ricoh Aficio SP C240SF - Maintenance; Cleaning; Cautions to Take When Cleaning

CES078

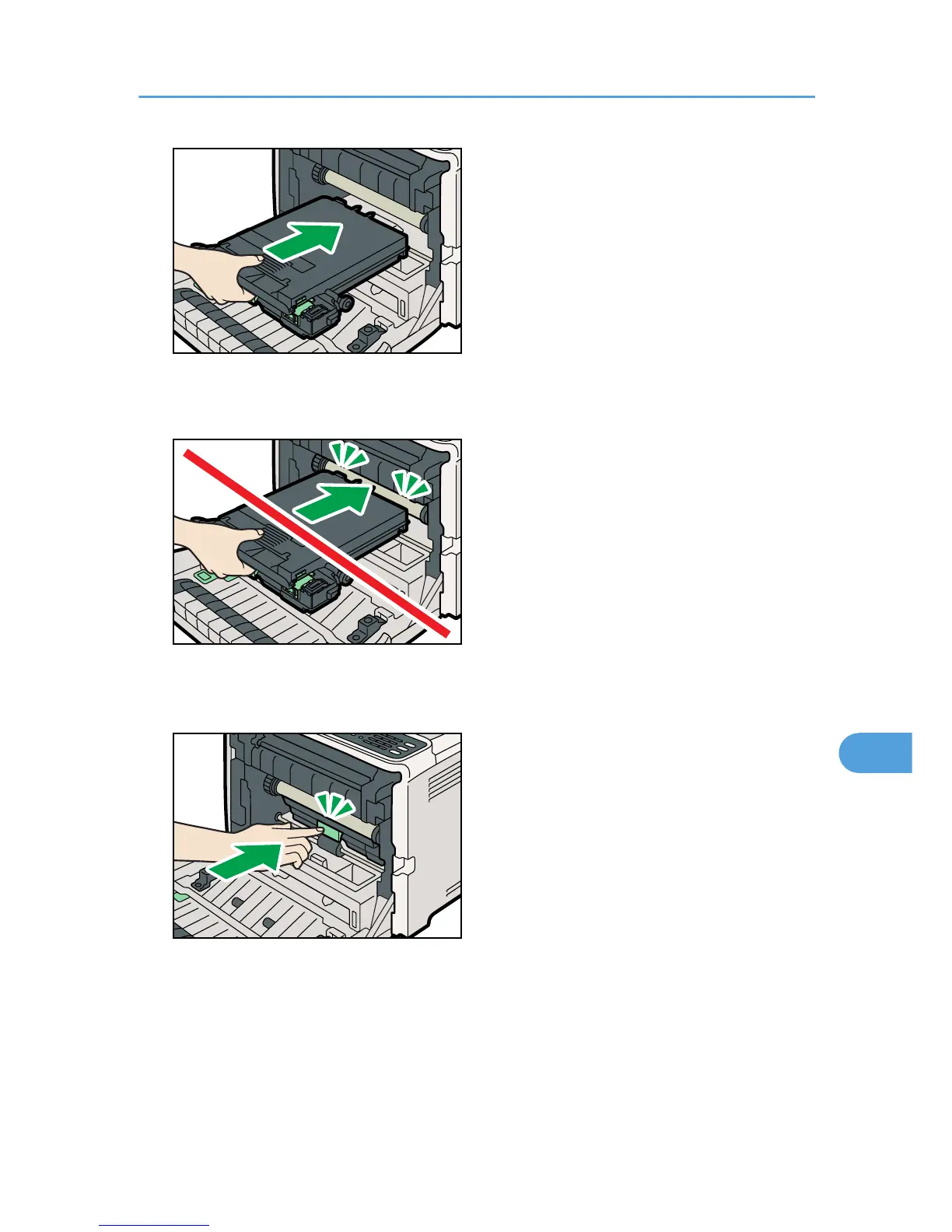

To prevent the waste toner bottle touching the intermediate transfer unit (the position shown by the
arrow in the illustration below), do not lift the bottle while inserting it.
CES079
8. Push in the waste toner bottle until it clicks into place.
Push the middle part all the way in.
CES080
Replacing the Waste Toner Bottle
403
9
