Paper Exit Unit (MP 501/601)
SM 4-103 D255/D256/M281/M282
Replacement
and Adjustment
4.17 PAPER EXIT UNIT (MP 501/601)
4.17.1 PAPER EXIT UNIT

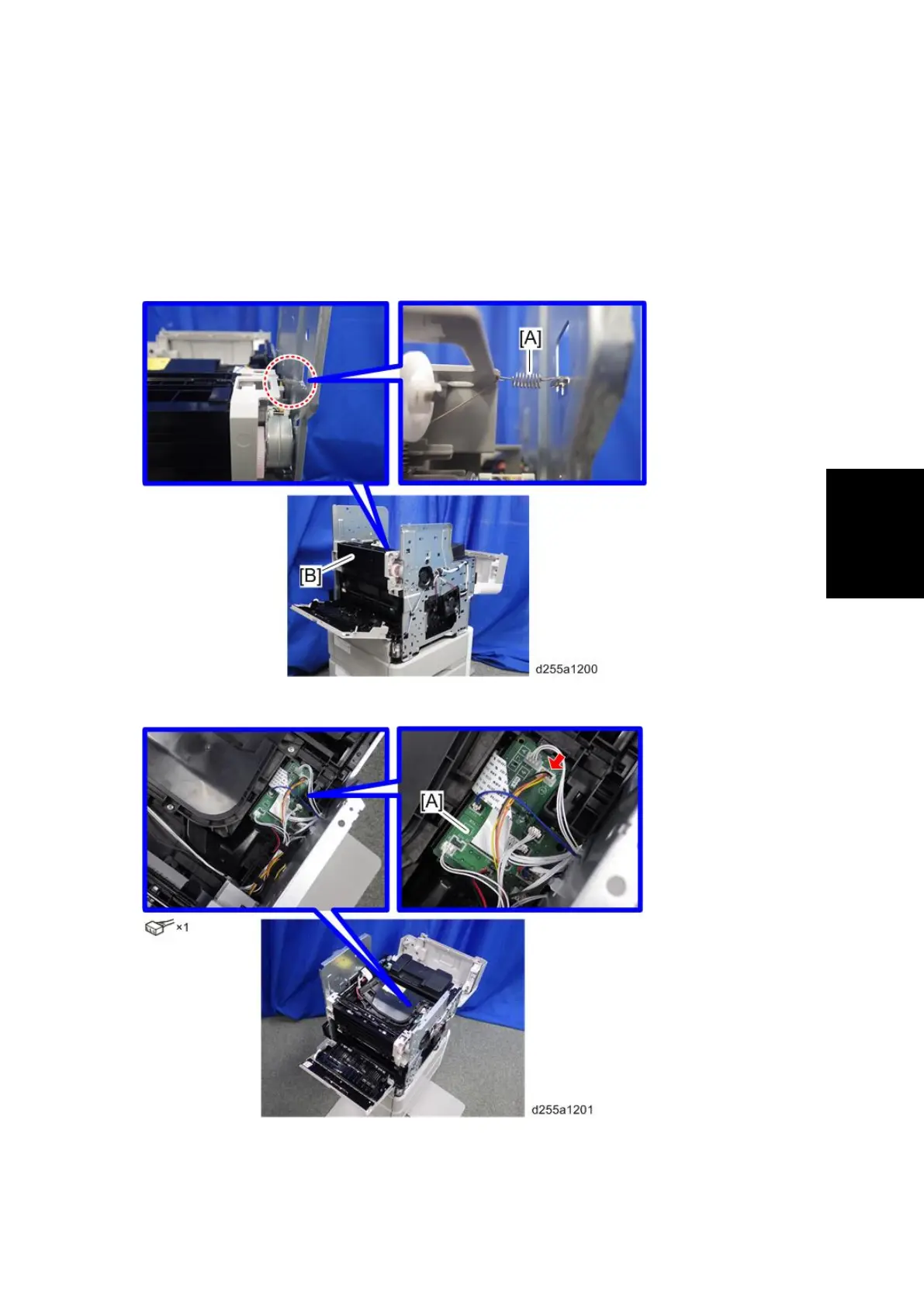

1. Remove the paper exit tray. (page 4-39)
2. Remove the spring [A] from the right side of the paper exit unit [B].
3. Disconnect the connector from the Connect-Left PCB [A].
