Electrical Components
D255/D256/M281/M282 4-152 SM

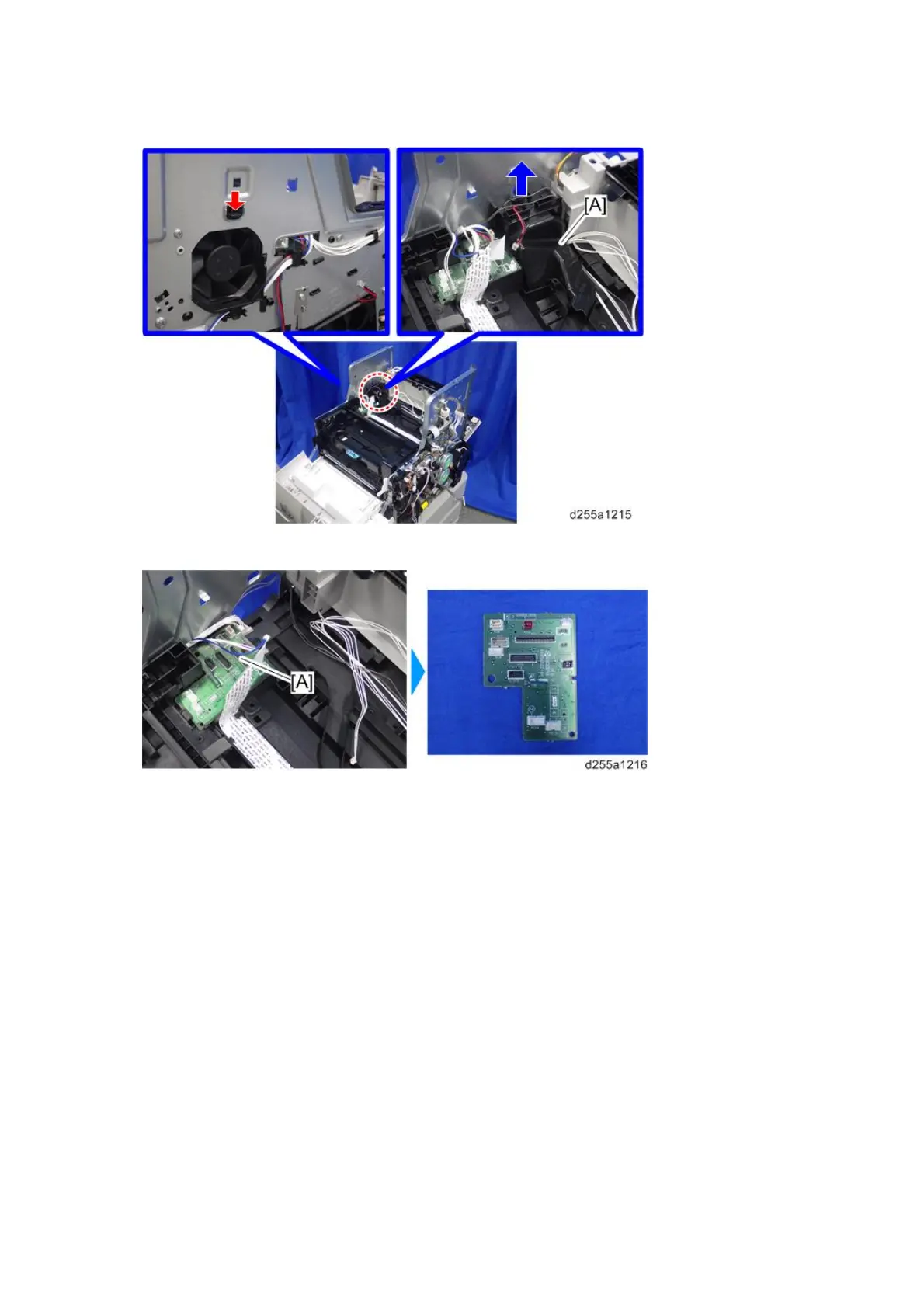

6. Remove the laser fan unit [A]. (hook×1)
7. Remove the Connect-Left PCB [A].
