ARDF (MP 501/601 Only)
SM 4-163 D255/D256/M281/M282
Replacement
and Adjustment

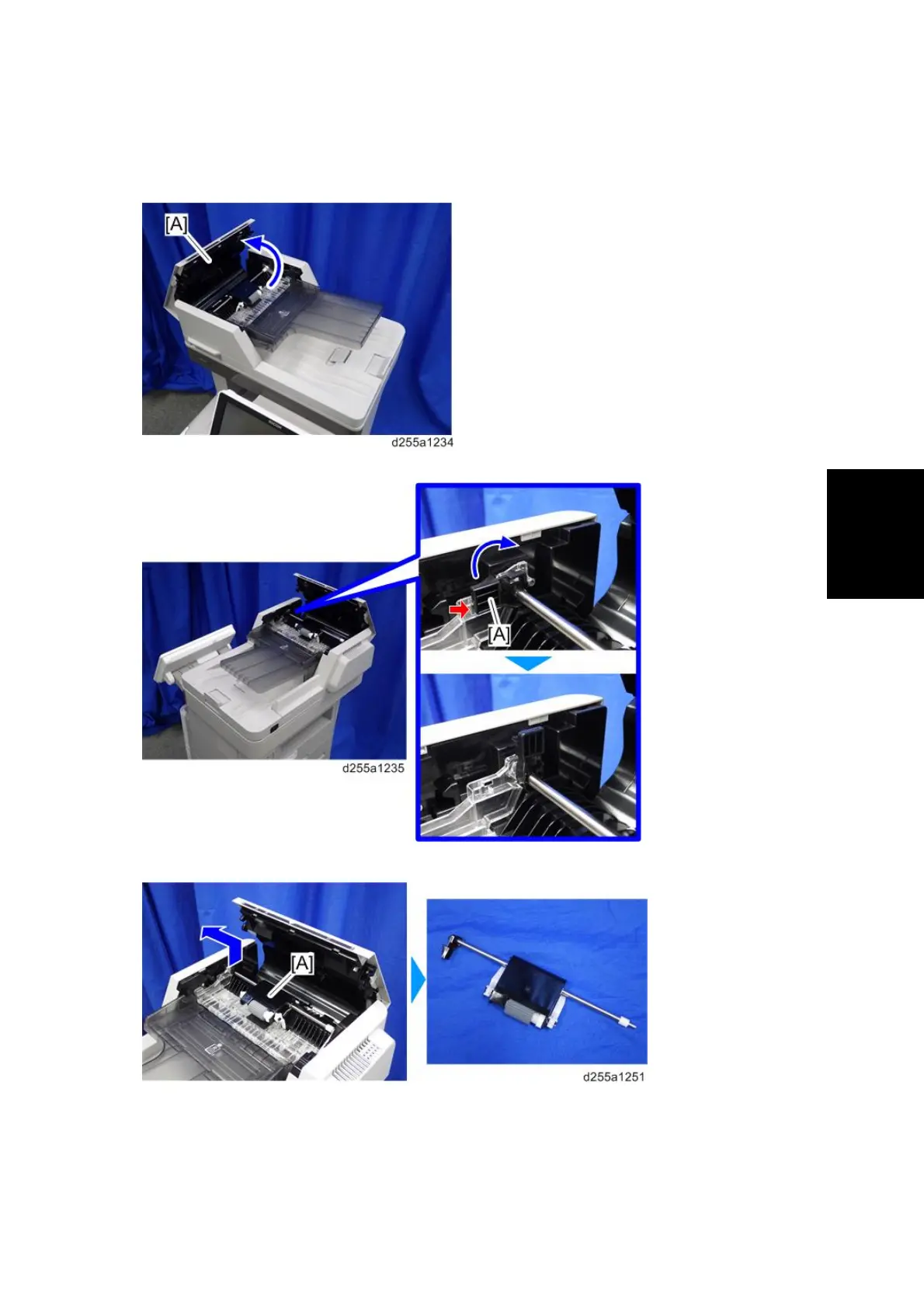

4.25.2 ARDF PAPER FEED ROLLER, ARDF PICKUP ROLLER
1. Open the ARDF upper cover [A].
2. Rotate the lock lever [A] to the unlock position. (hook×1)
3. Remove the ARDF paper feed roller and ARDF pickup roller [A].
