Drive Unit

D255/D256/M281/M282 4-126 SM

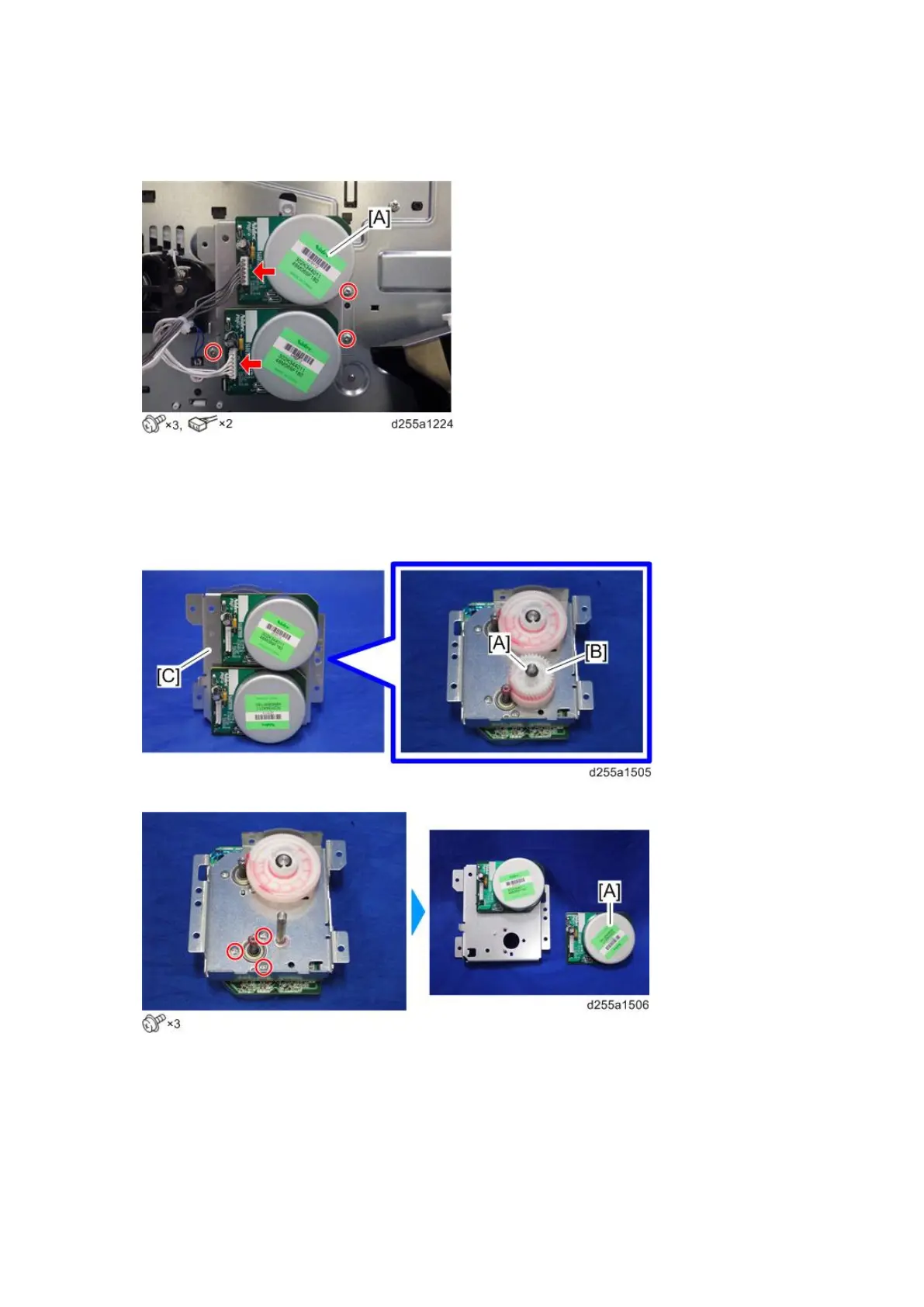

5. Remove the main drive unit [A].

Main Motor

1. Remove the main drive unit. (page 4-125)

2. Remove the clip [A] and gear [B] from the backside of the main drive unit [C].

3. Remove the main motor [A].
