Ricoh D683 - Platen Adjustment

Platen Adjustment

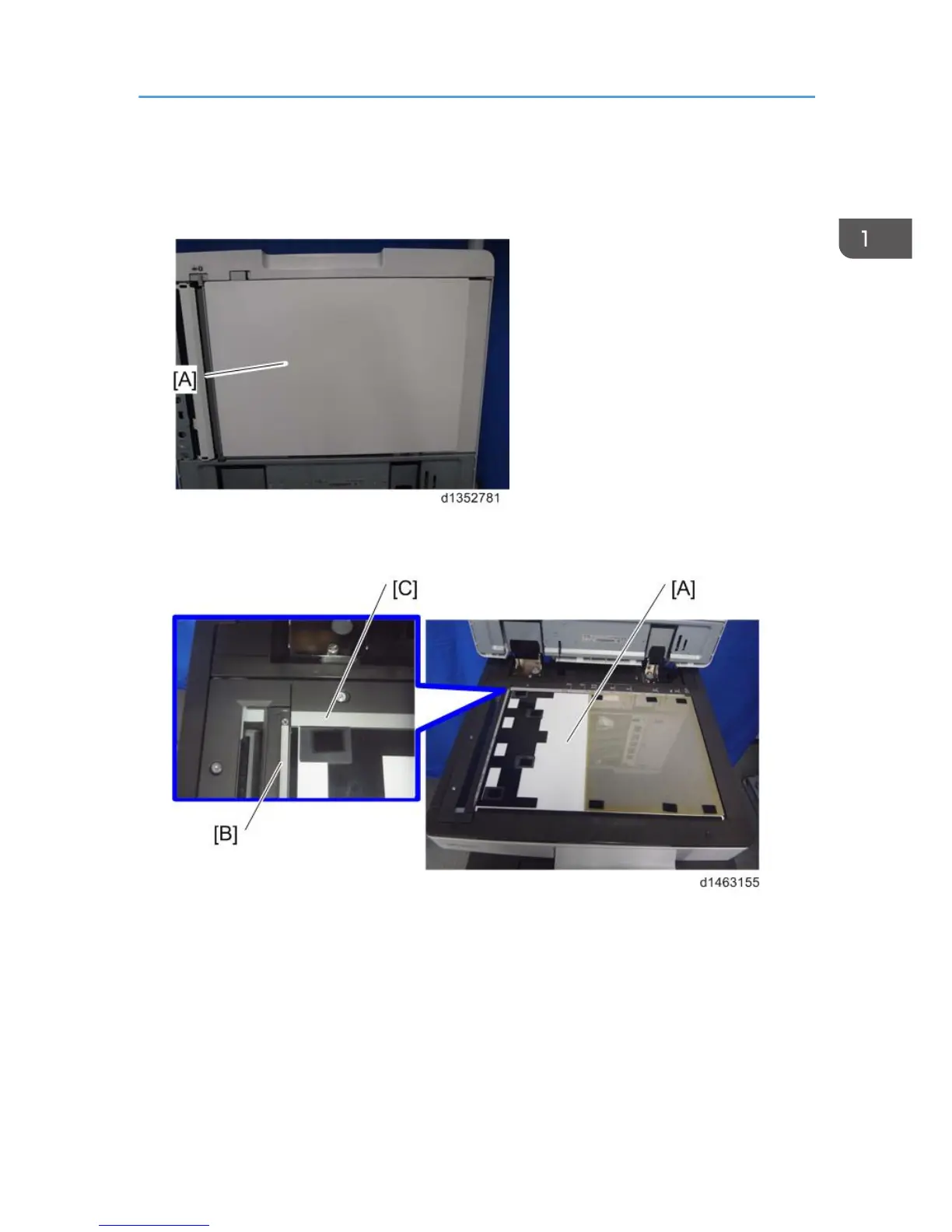

1. Open the ADF and remove the white cover (fabric fastener × 10).
2. Put the white cover [A] in the correct position on the exposure glass, aligning it with the
glass cover [B] and the rear scale [C].
Platen Adjustment
13
