Document Feed Components

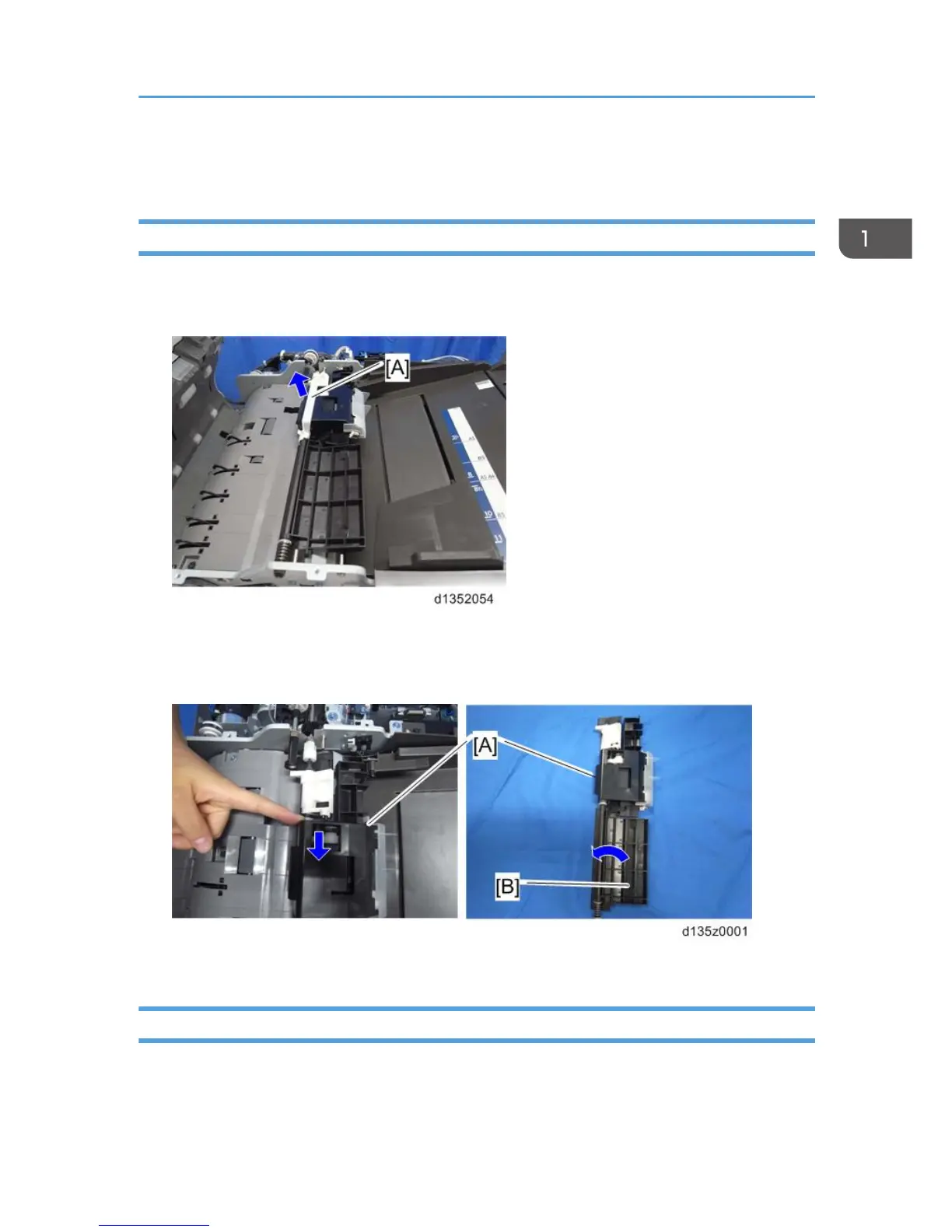

Original Feed Unit
1. Open the feed cover.
2. Remove the snap-fit [A].
3. Pull the original feed unit [A] forward to release the back side of the shaft.
•
Open the original lift plate [B] when pulling the original feed unit forward. This makes it easier
to remove the original feed unit.
4. Remove the original feed unit.
Pick-up Roller / Transport Belt
1. Original feed unit (page 19).
Document Feed Components
19
