Ricoh D683 - ADF Feed Cover Interlock Switch; Pick-Up Roller HP Sensor

3. Bottom plate position sensor [A] ( ×1).

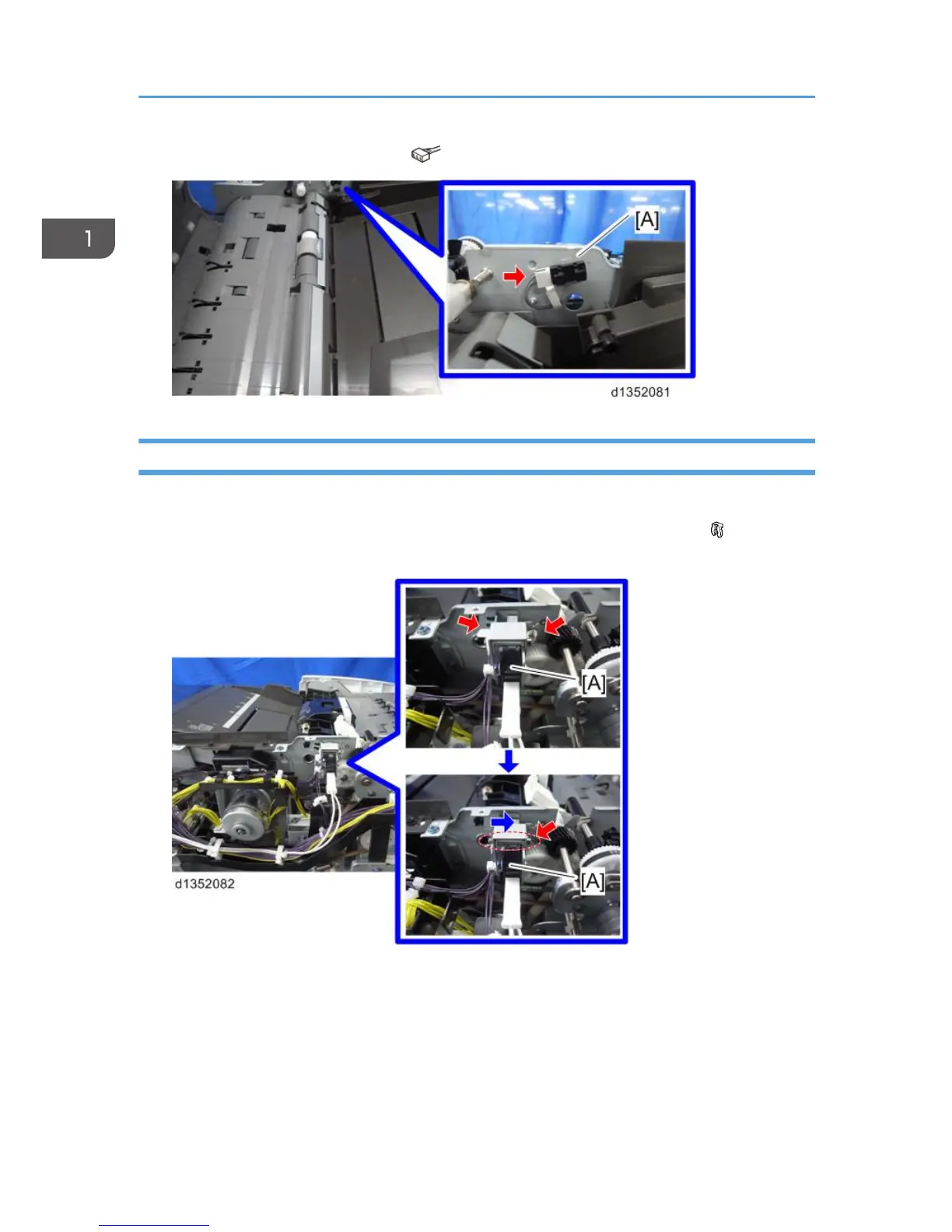

ADF Feed Cover Interlock Switch / Pick-up Roller HP Sensor
1. ADF rear cover (page 16).
2. Remove the ADF feed cover interlock switch [A] from the retaining bracket ( ×1,
spring×1, pin×1).
