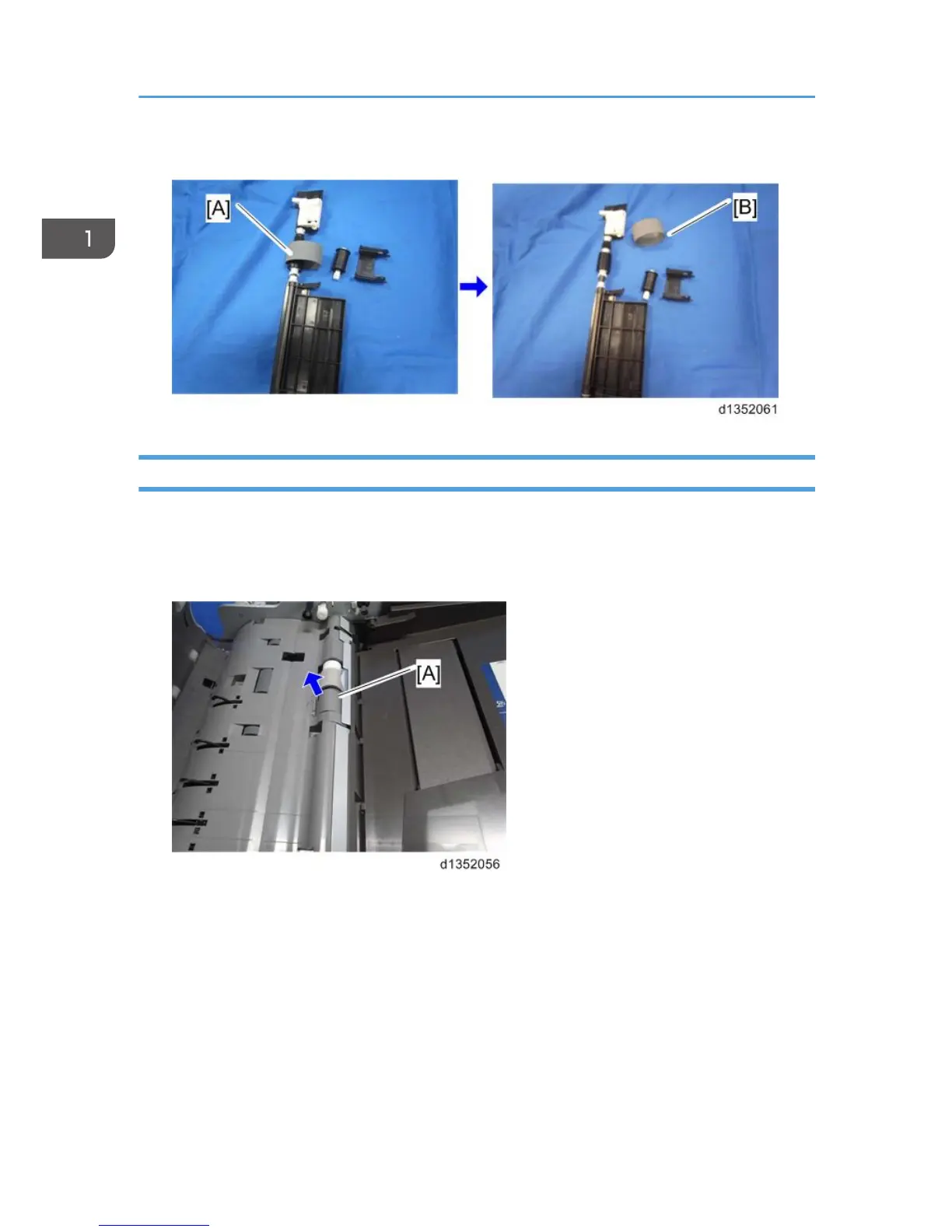

5. Remove the feed belt [B] from the feed belt holder [A].
ADF Separation Roller
1. Open the feed cover.
2. Original feed unit (page 19).
3. ADF separation roller cover [A].
1. Replacement and Adjustment
22
