Electrical Components
CIS Unit
1. ADF Separation Roller (page 22).
2. ADF front cover (page 15).

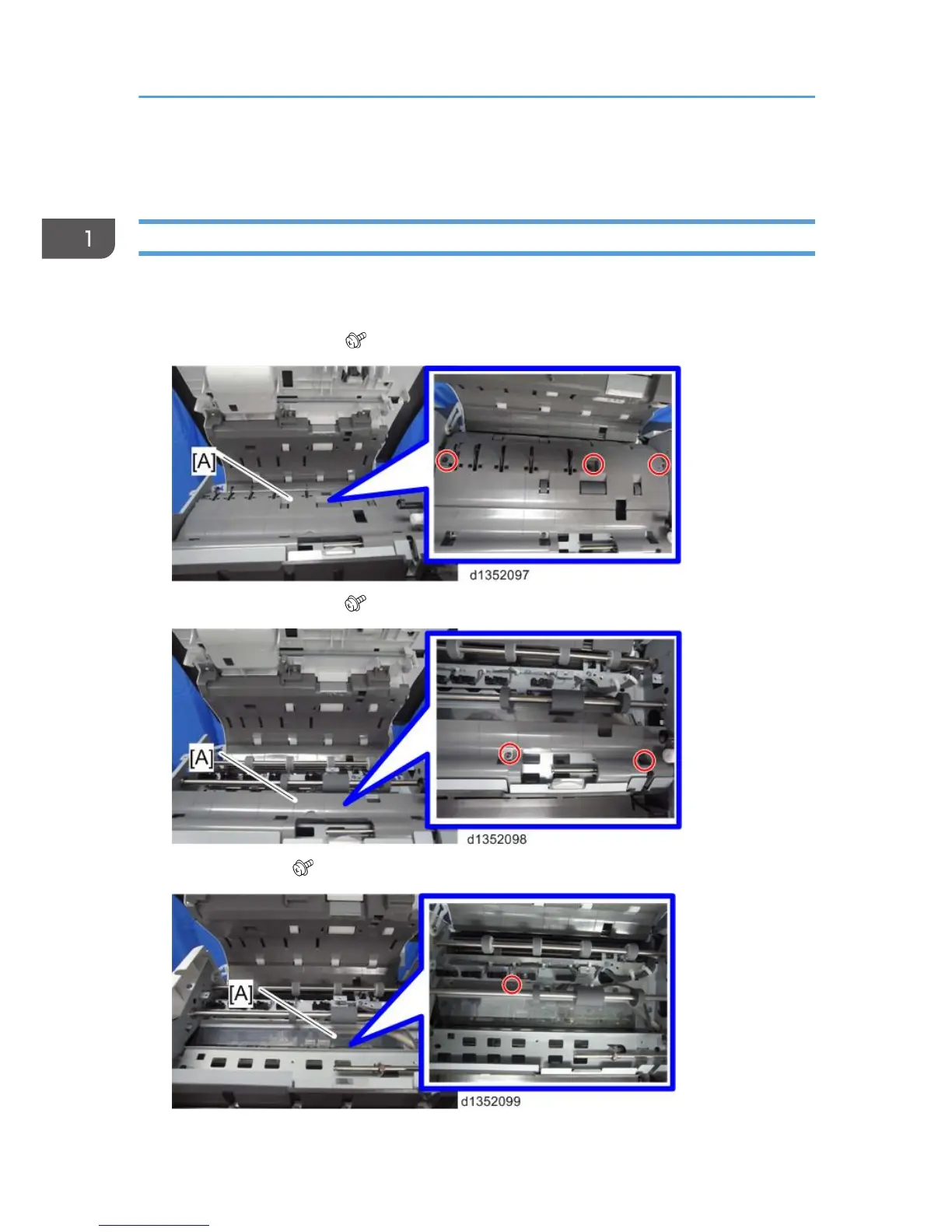

3. Guide plate (large) [A] ( ×3).
4. Guide plate (small) [A] ( ×2).
5. Guide plate [A] ( ×1).
1. Replacement and Adjustment
28
