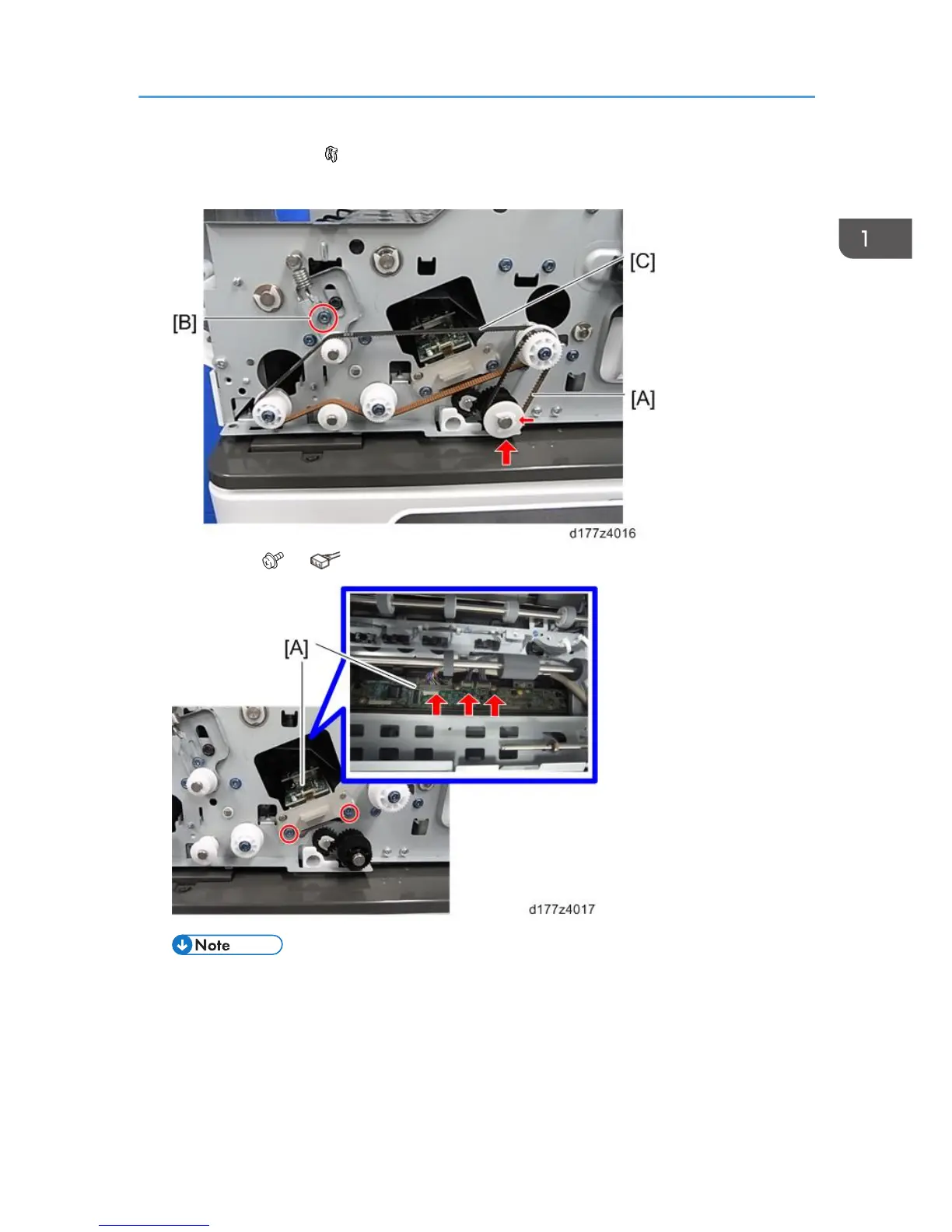

6. Short timing belt [A] ( ×1, pulley × 1)
7. Loosen the screw [B], and then remove the long timing belt [C].
8. CIS unit [A] ( ×2, ×3)
• To prevent scratches on the surface of the CIS glass, removal of the CIS unit must be done with
the white cover [A] open.
Electrical Components
29
