ADF Pick-up Roller Lift Motor / ADF Transport Motor
1. ADF rear cover (page 16).

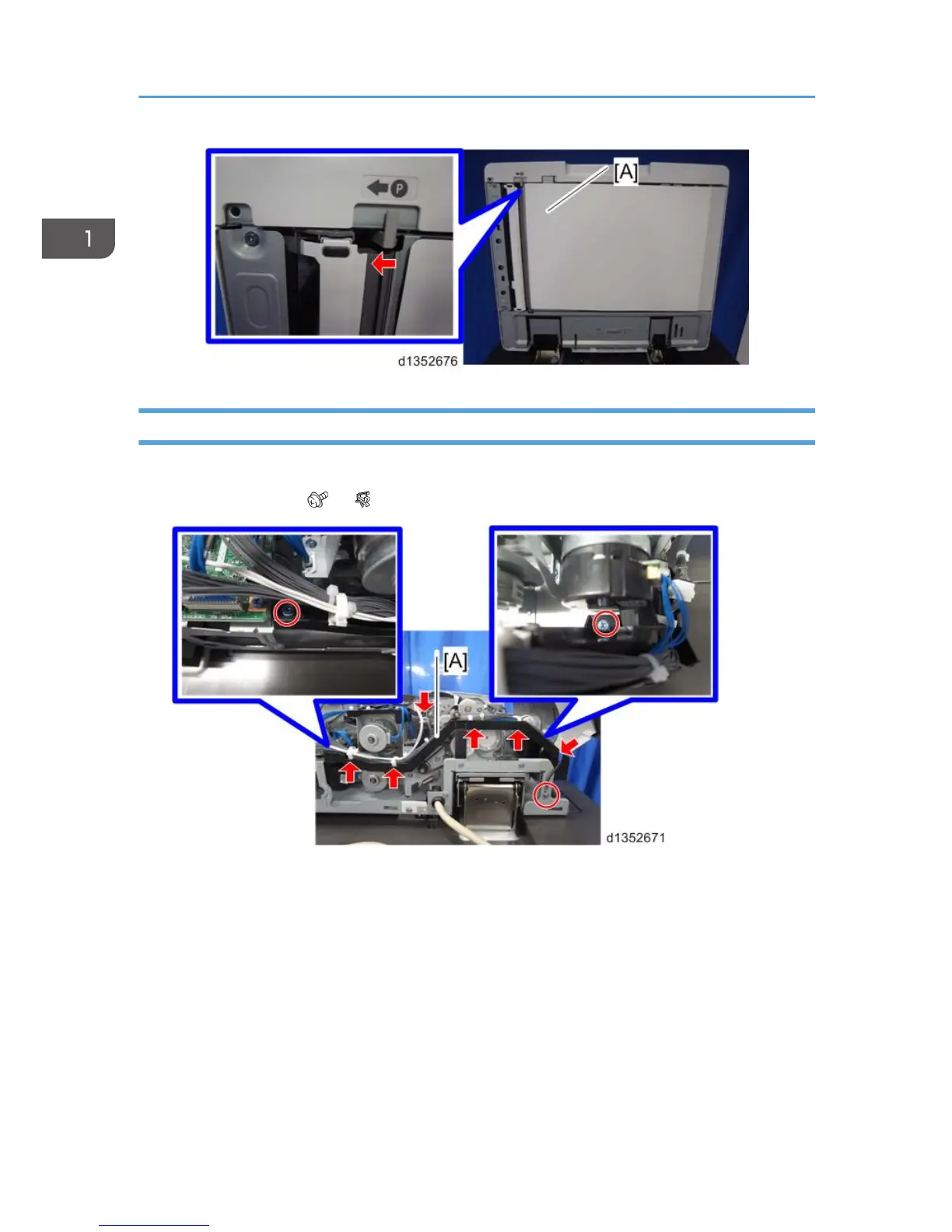

2. Frame (black) [A] ( ×3, ×6).
