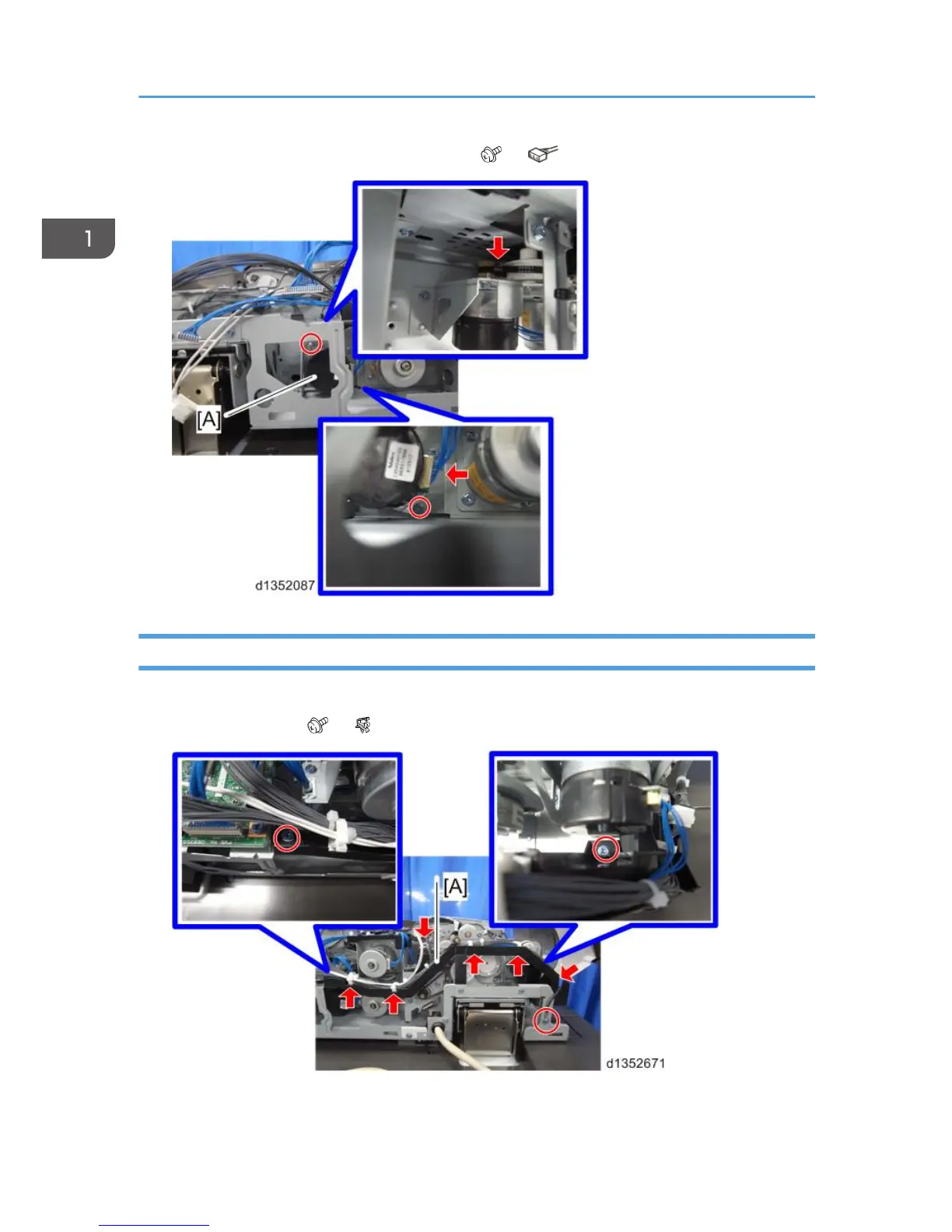

2.
ADF exit motor [A] along with the bracket (
×2,
×1, spring×1, timing belt×1).
ADF Feed Motor
1.
ADF rear cover (
page 16
).
2.
Frame (black) [A] (
×3,
×6).
3.
ADF entrance motor along with the frame (
page 46
).
1. Replacement and Adjustment
48
