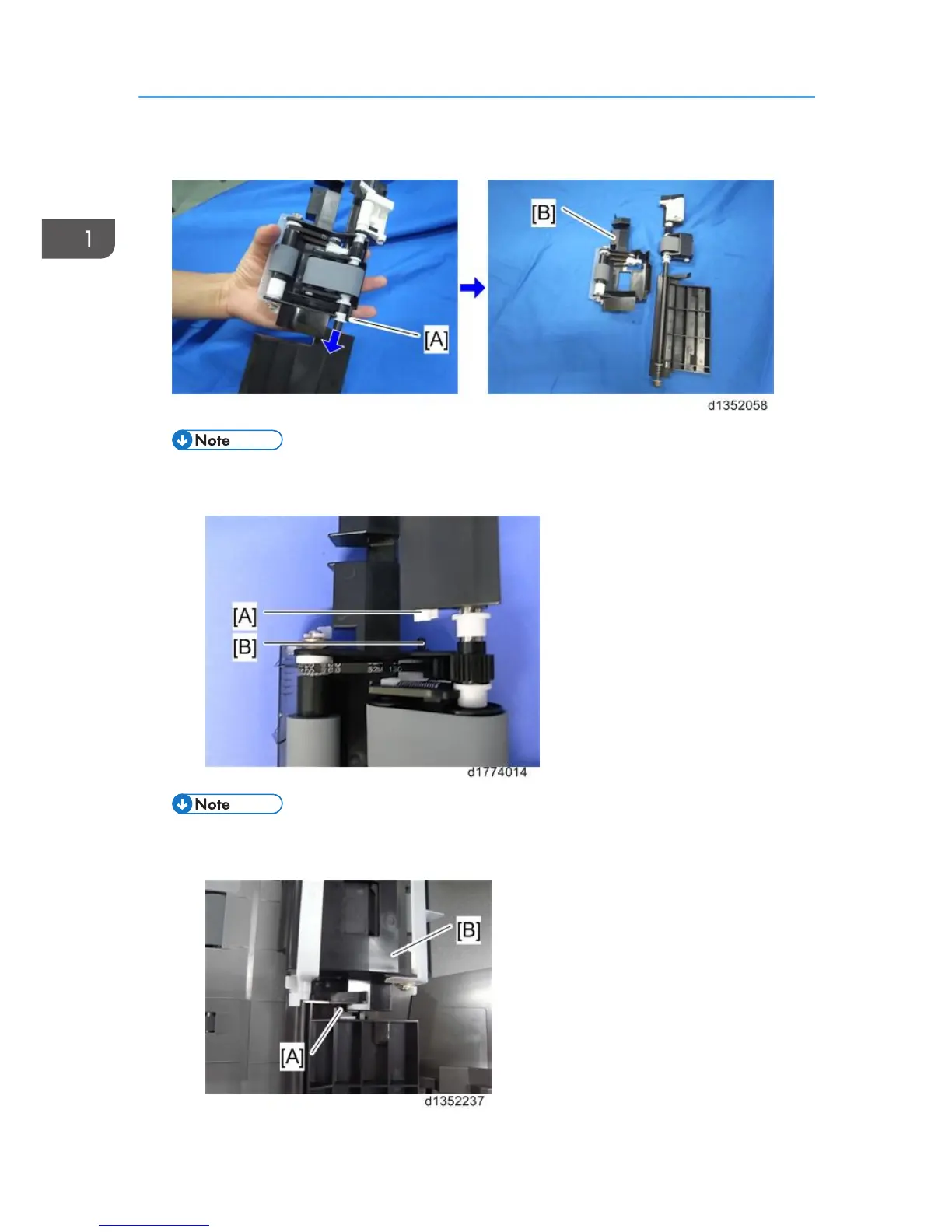

2. Slide the resin bushing [A], and then remove the pick-up roller unit [B].
• When reassembling this unit, make sure that the boss [B] of the pick-up roller unit is in the hole
[A] of the original lift plate.
• When reassembling this unit, make sure that the tab on the front guide plate [A] is above the
pick-up roller [B].
