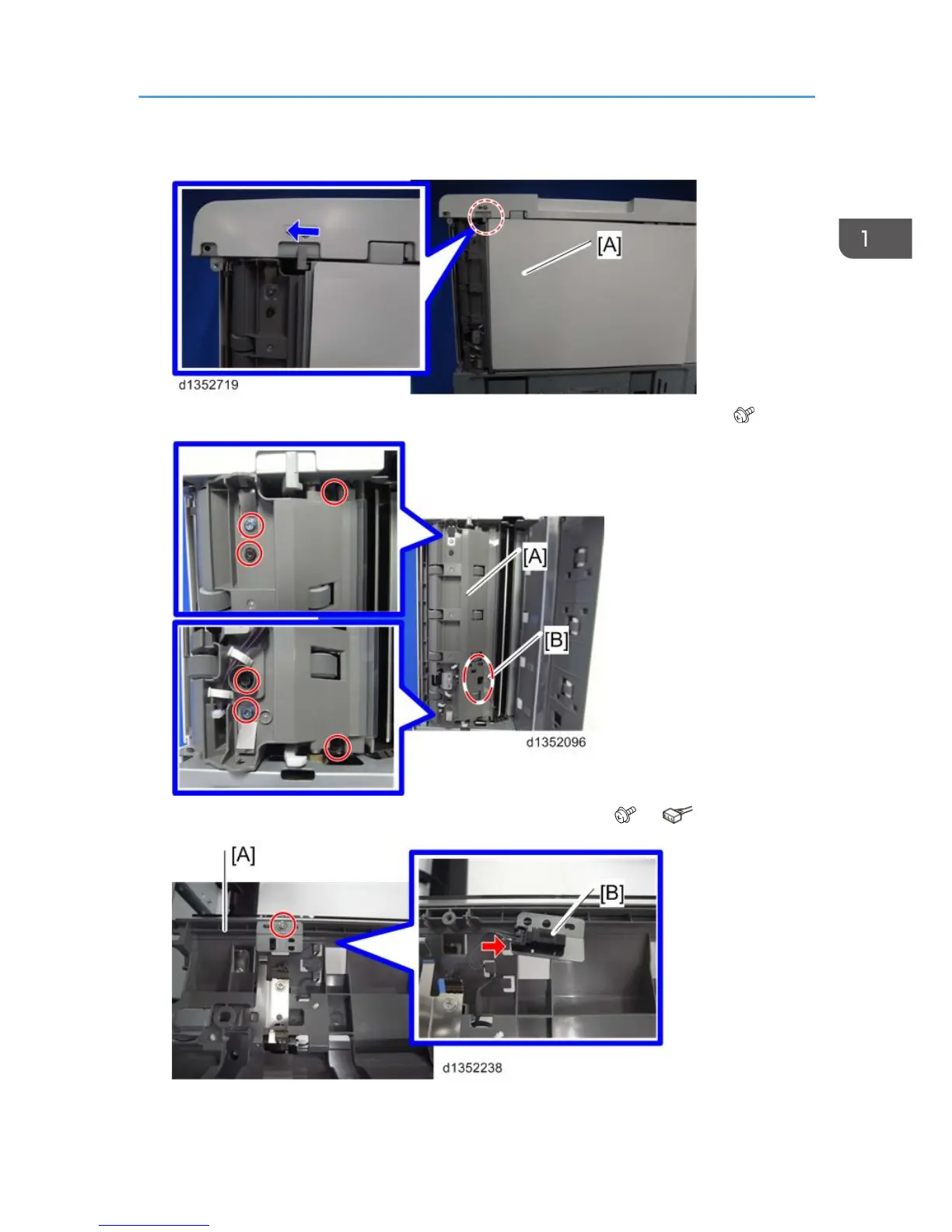

5. Slide the tab to the left and then open the white cover [A].
6. Remove the original exit sensor [B], which is mounted on the upper guide [A] ( ×6).
7. Remove the original exit sensor [B] from the upper guide [A] ( ×1, ×1).
Electrical Components
35
