2.Replacement and Adjustment
34

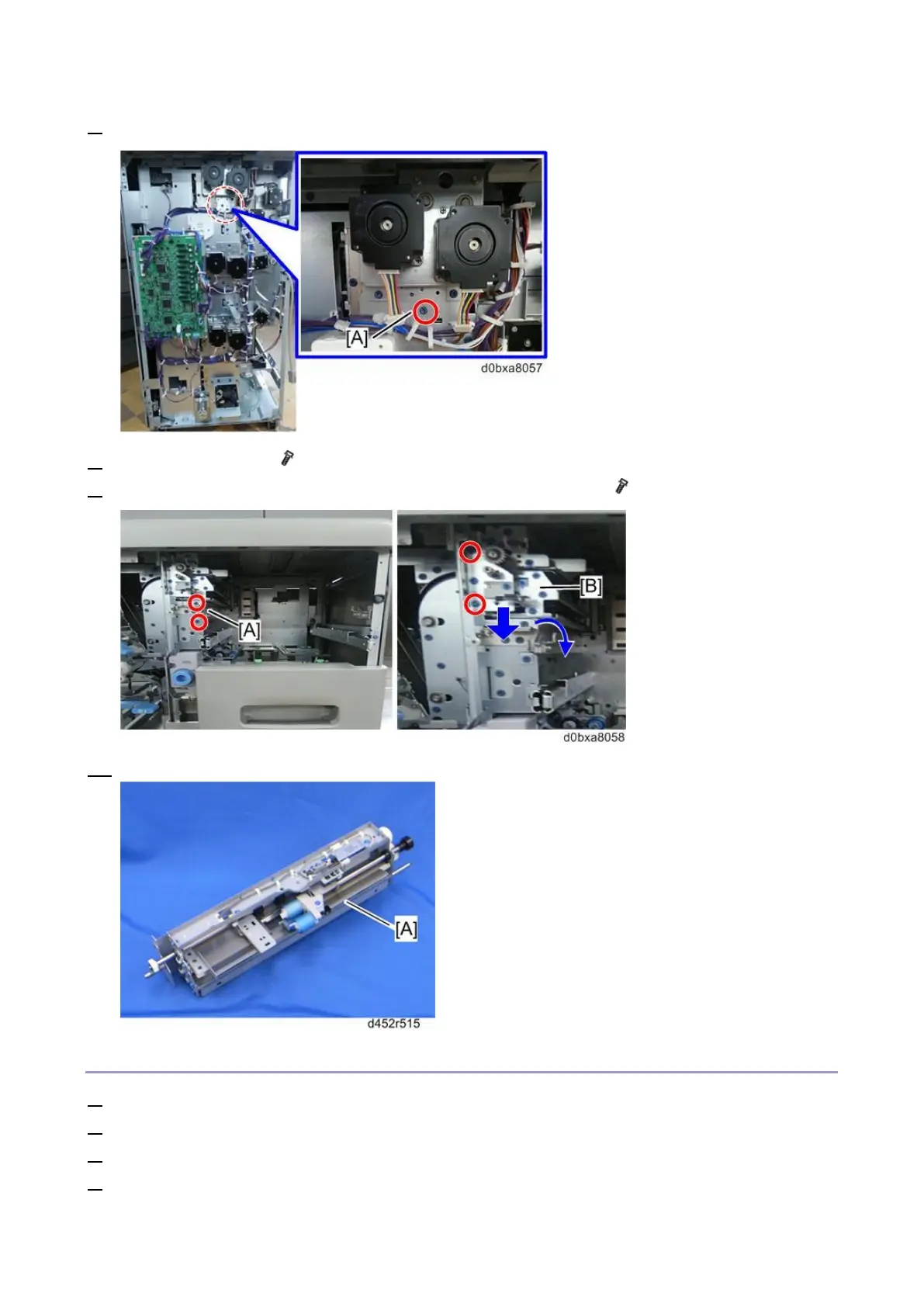

7. Remove the screw [A] at the rear.
8. Remove the stay [A] ( x 2)
9. Pull the paper feed unit [B], and then move it to the lower right side ( x 2).
10. Remove the paper feed unit [A]
Middle Tray Paper Feed Unit
1. Remove the rear cover. (Front Door and Covers)
2. Remove the right cover.(Front Door and Covers)
3. Remove the inner cover. (Inner Covers)
4. Remove the middle tray. (Middle Tray (Tray 5))
