2.Replacement and Adjustment
35

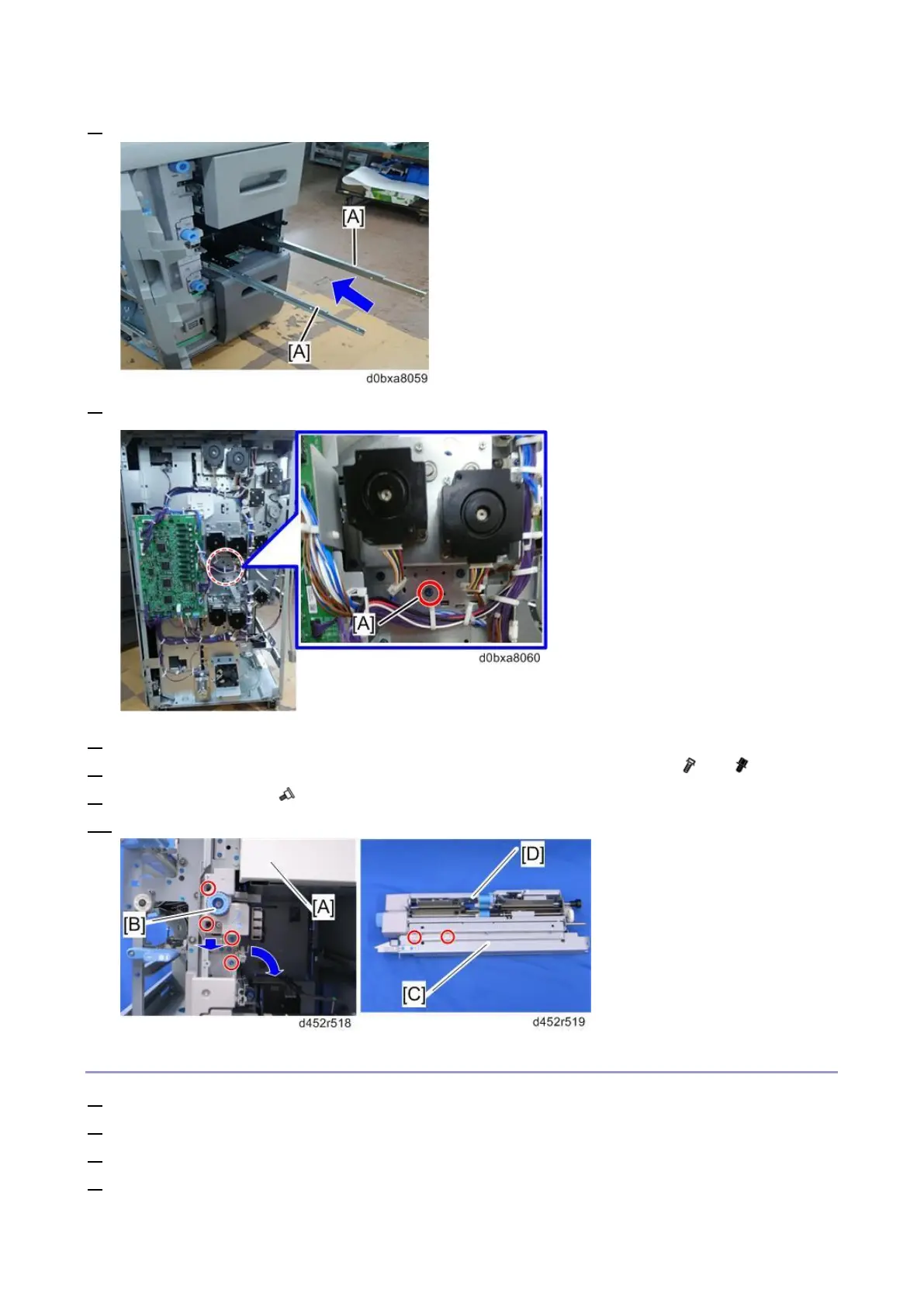

5. Push the slide rails [A] into the machine.
6. Remove the screw [A] at the rear.
7. Pull out the top tray [A].
8. Pull the paper feed unit with stay [B], and then move it to the lower right side ( x 2, x 2).
9. Remove the stay [C] ( x 2)
10. Remove the paper feed unit [D]
Bottom Tray Paper Feed Unit
1. Remove the rear cover (Front Door and Covers).
2. Remove the right cover (Front Door and Covers).
3. Remove the inner cover (Inner Covers).
4. Remove the bottom tray (Bottom Tray (Tray 6)).
To Next Page
