Introduction
7

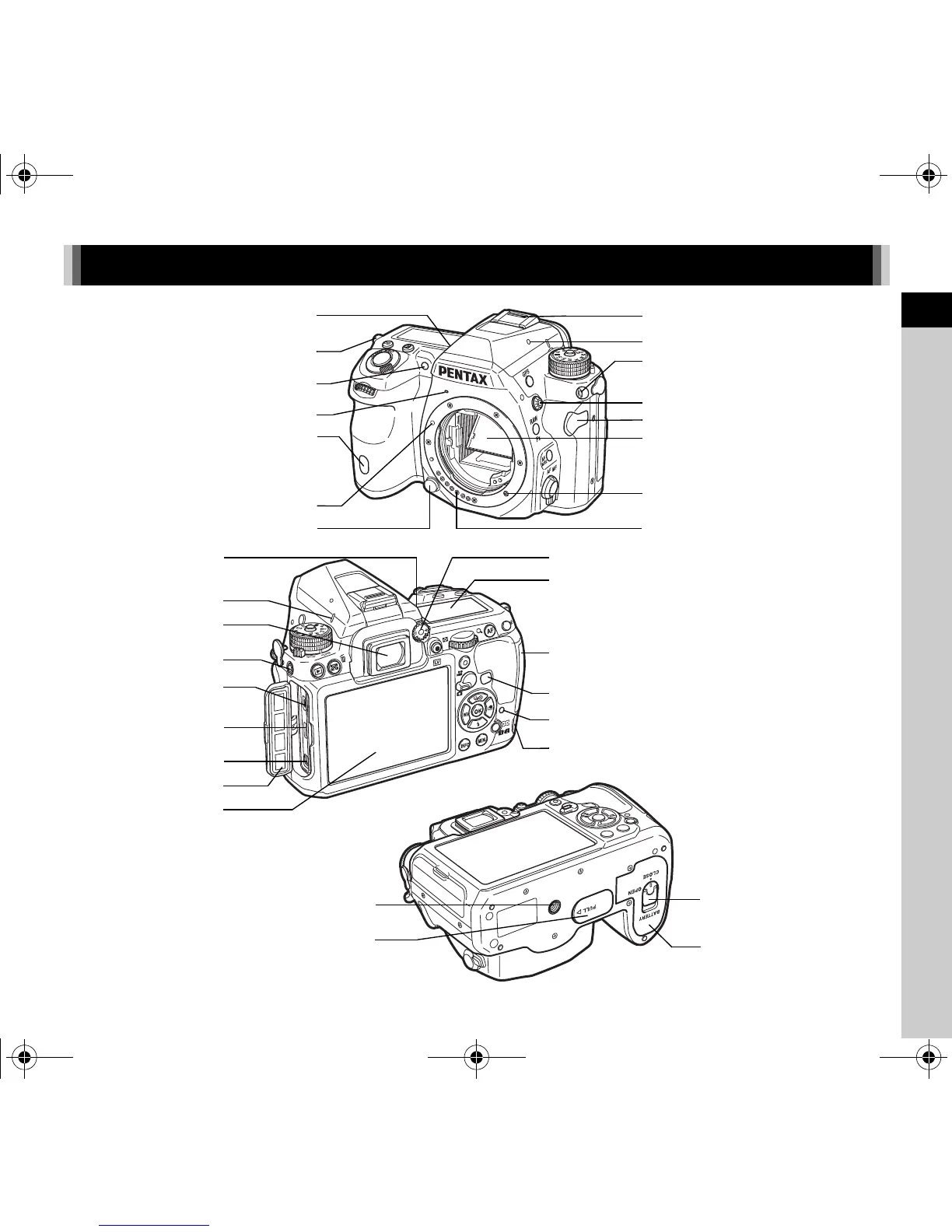

Names and Functions of the Working Parts
Self-timer lamp/Remote control receiver
AF coupler
Mirror
Lens unlock button
Lens information contacts
Strap lug
Hot shoe
Lens mount index
Speaker
X-sync socket
Strap lug
AF assist light
Card access lamp
USB terminal (micro B)
DC input terminal
LCD panel
Terminal cover
Cable switch terminal
Self-timer lamp/Remote control receiver
Diopter adjustment dial
HDMI terminal (type D)
Microphone terminal
Microphone
Image plane indicator
Viewfinder
Monitor
Dual card slot for SD Memory Cards
Tripod socket
Battery cover
Battery cover unlock knob
Battery grip contacts
Headphone terminal
GPS indicator lamp
Dial indicator
