18
INSTALLATION
The unit must be installed on a concrete service pad (3.5” - 4”
height), with no gradient in any direction, to ensure proper
condensate and water drainage (see Fig. 8). If anchoring the unit
refer to Fig. 9 and Fig. 10 for anchor locations.

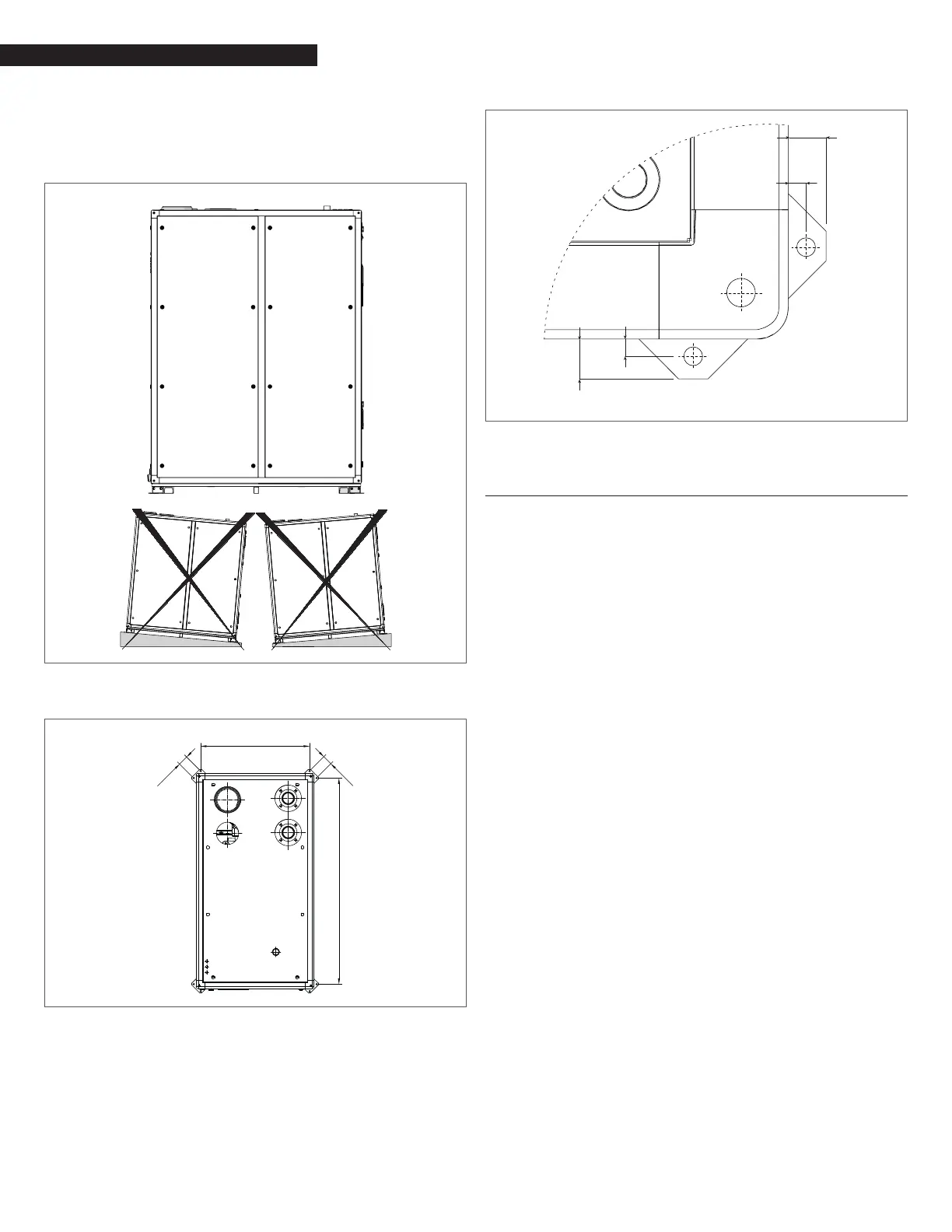

Fig. 8
Array AR 1000, AR 1500 and AR 2000 Installation
57.2”
Fig. 9
Array AR 1000, AR 1500 and AR 2000 Anchoring bolts
0.28’’
0.75’’
0.28’’
Fig. 10
Array AR 1000, AR 1500 and AR 2000 Anchoring bolt detail
4.5 Boiler Location
− This boiler is suitable only for indoor installations.
− To operate properly and safely, this boiler requires a
continuous supply of air for combustion. Install this boiler
in a clean, dry location with adequate air supply.
− Do not locate this boiler in an area where it will be subject
to freezing.
− The boiler should be located close to a oor drain in an
area where leakage from the appliance or connections will
not result in damage to the adjacent area or to lower oors
in the structure.
− DO NOT install this appliance in any location where gasoline
or ammable vapors are likely to be present.
− DO NOT install this appliance on top of carpet or combustible
ooring.
− Appliance must be installed on a concrete level service pad
(3.5” - 4” minimum recommended height).
− Maintain required clearances from combustible surfaces.
