OPERATION

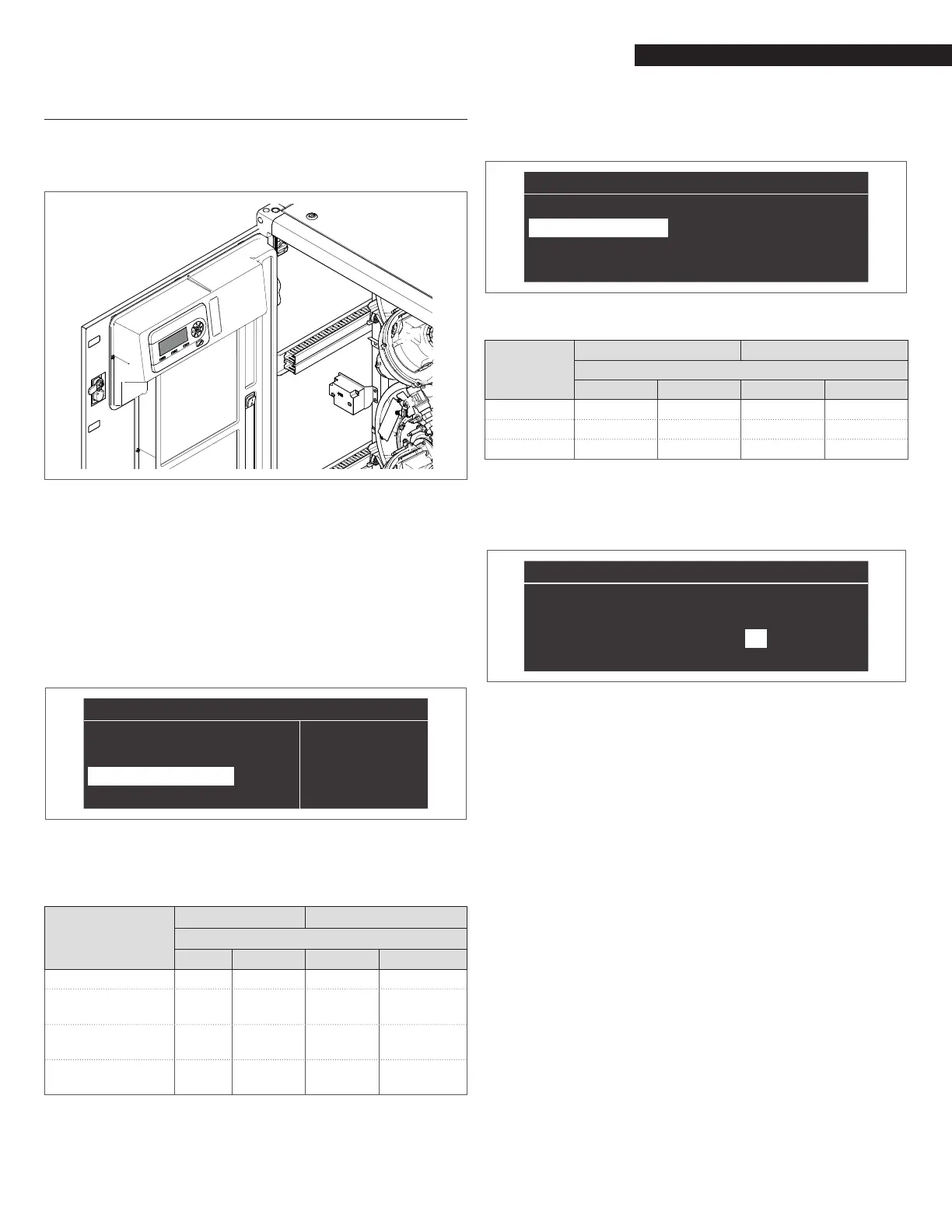

6.4 Display board replacement
9
System congurations must be performed only by the Technical
Assistance Service or by personnel authorized by
R.
When replacing the front control panel, an initial screen with the
logo is displayed on the next reboot
R.
The system performs a consistency check between the
conguration data saved on the motherboard and those saved in
the user interface; therefore, when replacing the control interface,
the system can detect an inconsistency between the saved data.
Set the Par. 97 and the Par. 98.
Proceed as follows:
− On the home screen of the control panel, press the ● key
− Select "Settings" with the ▲ / ▼ keys and press the ● key
− Select "Device conguration" with the ▲ / ▼ keys and press
the ● key
“Settings”
“
General Settings”
“Boiler Settings”
“Appliance Configuration”
− Enter the password as described in paragraph "Password
access"
− Select "(97) IO Conguration" and press the ● button
− With the ▲ / ▼ keys change the value following what is in
the following table and press the ● key:
Model
Managing Dependent
Par. 97
MTN GPL MTN GPL
AR 1000 12 22 13 21
AR 1000
WITH AIR DUMPER
12 (*) 23
AR 1500
WITH AIR DUMPER
12 (*) 23
AR 2000
WITH AIR DUMPER
12 (*) 23
9
(*) Par. 126 = 10 (DEFAULT 6)
− Press the ▼ key, select "(98) Appliance Settings" and press
the ● key
“
Appliance Configuration
”
“
(97) IO Configuration” 1
“(98) Appliance Settings” 2
“Configuration Confirmed” “No”
− With the ▲ / ▼ keys change the value following what is in
the following table and press the ● key:
Model
Managing Dependent
Par. 98
MTN GPL MTN GPL
AR 1000 17 18 17 18
AR 1500 17 18 17 18
AR 2000 17 18 17 18
− Press the ▼ key, select "Cong. Conrmed" and press the
● key
− With the ▲ / ▼ keys change the value to "Yes" and press
the ● key
“Appliance Configuration”
“
(97) IO Configuration” 1
“(98) Appliance Settings” 4
“Configuration Confirmed” “Yes”
At this point the systems starts an application update process.
Once this is nished, the menu "Settings" appears on the menu.
− Press ◄ until you return to the home screen
An error message is displayed for a few seconds and then the
display returns to its normal state.
