Riello Array AR 2000 - Size and Connections

8
PRODUCT DESCRIPTION
2.75”
(*)
63.45”
67.2”
60.8”
10.75”
Ø1.5”
50.8”
8.5” 11.5”
6.7”
33.3”
Ø3”
7.47” 9.48”
Ø6”
Ø1.57”
Ø2.36”
4.74”
5.9”
11.5” 10.15”
Ø3”
Ø6”
8.85”

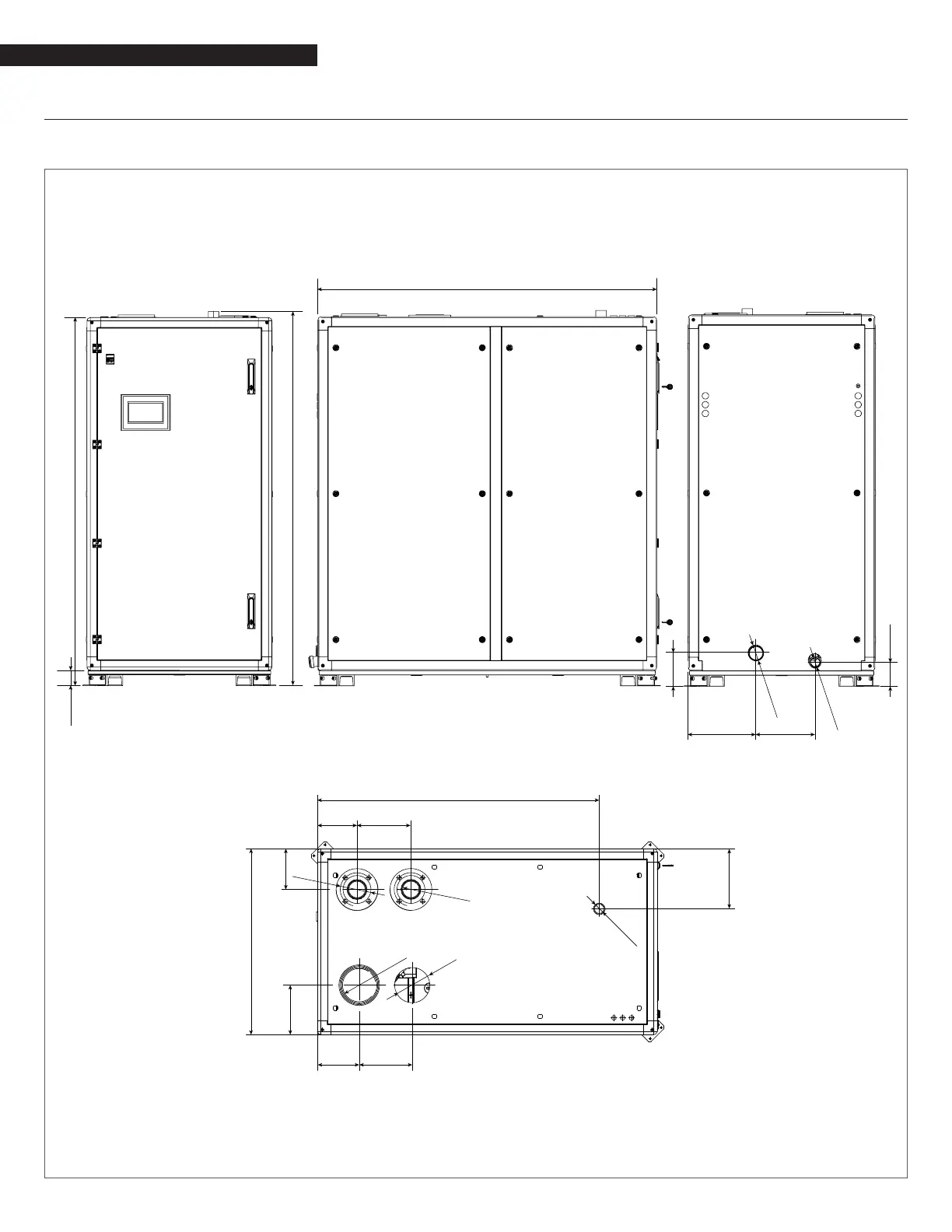

2.7 Size and Connections
ARRAY AR 1000, AR 1500
Dimensions are in inches
(*) Mounting feet may be removed during installation to reduce the overall height by 2”. Feet must be re-installed once boiler is in
its nal location.
