Riello NXHM - Room Thermostat; Restore Factory Settings; Holiday Away Setting

105
ENGLISH

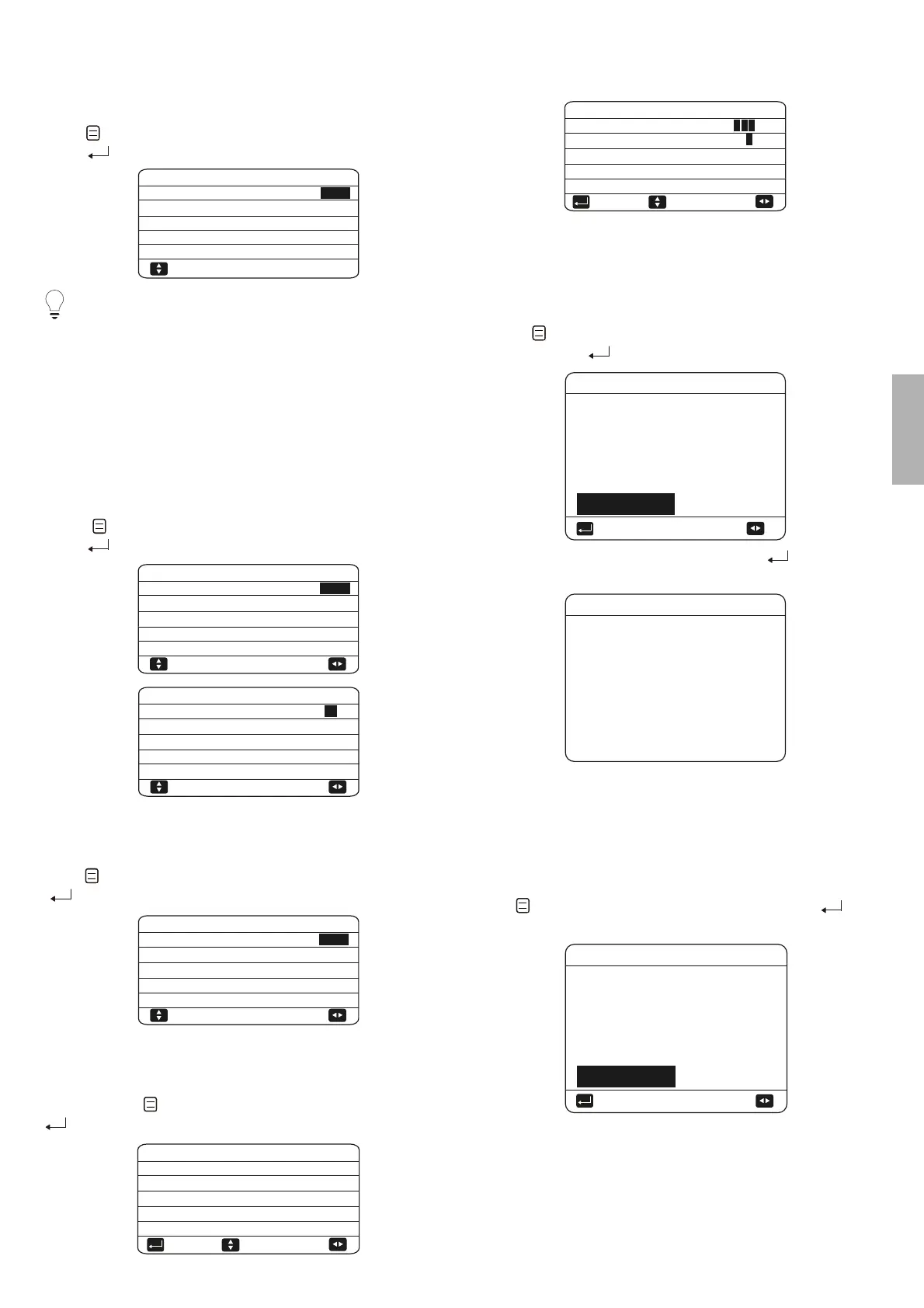

10.5.6 ROOM THERMOSTAT
About ROOM THERMOSTAT.
The ROOM THERMOSTAT is used to set whether the room thermostat
is available.
How to set the ROOM THERMOSTAT.
Go to "
"> FOR SERVICEMAN> 6.ROOM THERMOSTAT.
Press
" " . The following page will be displayed:
NON
6 ROOM THERMOSTAT
6.1 ROOM THERMOSTAT
ADJUST
NOTE
ROOM THERMOSTAT = NON, no room thermostat.
ROOM THERMOSTAT = MODE SET, the wiring of room thermostat
should follow method A.
ROOM THERMOSTAT=ONE ZONE, the wiring of room thermostat
should follow method B.
ROOM THERMOSTAT=DOUBLE ZONE, the wiring of room thermo-
stat should follow method C (refer to 9.7.6 "Connection for other com-
SRQHQWV)RUURRPWKHUPRVWDW
10.5.7 Other HEATING SOURCE
The OTHER HEATING SOURCE is used to set the parameters of the
backup heater, additional heating sources and solar energy kit.
Go to "
"> FOR SERVICEMAN> 7.OTHER HEATING SOURCE,
Press
" " . The following page will be dispayed:
30MIN
-5°C
5°C
30MIN
5°C
7 OTHER HEATING SOURCE
7.1 dT1_IBH_ON
7.2 t_IBH_DELAY
7.3 T4_IBH_ON
7.4 dT1_AHS_ON
7.5 t_AHS_DELAY
ADJUST
1/2
-5°C
7 OTHER HEATING SOURCE
7.6 T4_AHS_ON
7.7 IBH LOCATE PIPE LOOP
7.8 P_IBH1
7.9 P_IBH2
7.10 P_TBH
ADJUST
2/2
0.0kW
0.0kW
2.0kW
10.5.8 HOLIDAY AWAY SETTING
The HOLIDAY AWAY SETTING is used to set the outlet water tempe-
rature to prevent freezing when away for holiday.
Go to "
"> FOR SERVICEMAN> 8.HOLIDAY AWAY SETTING. Press
" " . The following page will be displayed:
20°C
20°C
8 HOLIDAY AWAY SETTING
8.1 T1S_H.A._H
8.2 T5S_H.A._DHW
ADJUST
10.5.9 SERVICE CALL SETTING
The installers can set the phone number of the local dealer in 9.SERVI-
CE CALL SETTING. If the unit doesn’t work properly, call this number
for help. Go to "
"> FOR SERVICEMAN>SERVICE CALL. Press "
" . The following page will be displayed:
ADJUSTCONFIRM
9 SERVICE CALL SETTING
PHONE NO. ******************
MOBILE NO. ******************
3UHVVźŸWRVFUROODQGVHWWKHSKRQHQXPEHU7KHPD[LPXPOHQJWK
of the phone number is 13 digits, if the length of phone number is short
WKDQSOHDVHLQSXWŶDVVKRZQEHORZ
ADJUSTCONFIRM
9 SERVICE CALL
PHONE NO. ***************
MOBILE NO. ******************
The number displayed on the user interface is the phone number of
your local dealer.
10.5.10 RESTORE FACTORY SETTINGS
The RESTORE FACTORY SETTING is used to restore all the parame-
ters set in the user interface to the factory setting.
Go to "
"> FOR SERVICEMAN> 10.RESTORE FACTORY
SETTINGS. Press
" " . The following page will be displayed:
10 RESTORE FACTORY SETTINGS
All the settings will come back to
factory default.
Do you want to restore factory
settings?
CONFIRM
NO YES
Press ŻŹ to scroll the cursor to YES and press " " . The following
page will be displayed:
Please wait…
5%
10 RESTORE FACTORY SETTINGS
After a few seconds, all the parameters set in the user interface will be
restored to factory settings.
10.5.11 TEST RUN
TEST RUN is used to check correct operation of the valves, air pur-
ge, circulation pump operation, cooling, heating and domestic water
heating.
Go to "
"> FOR SERVICEMAN> 11.TEST RUN. Press " " . The
following page will be displayed:
11 TEST RUN
Active the settings and
active the “TEST RUN”?
CONFIRM
NO YES
