16
INSTALLATION
INSTALLATION

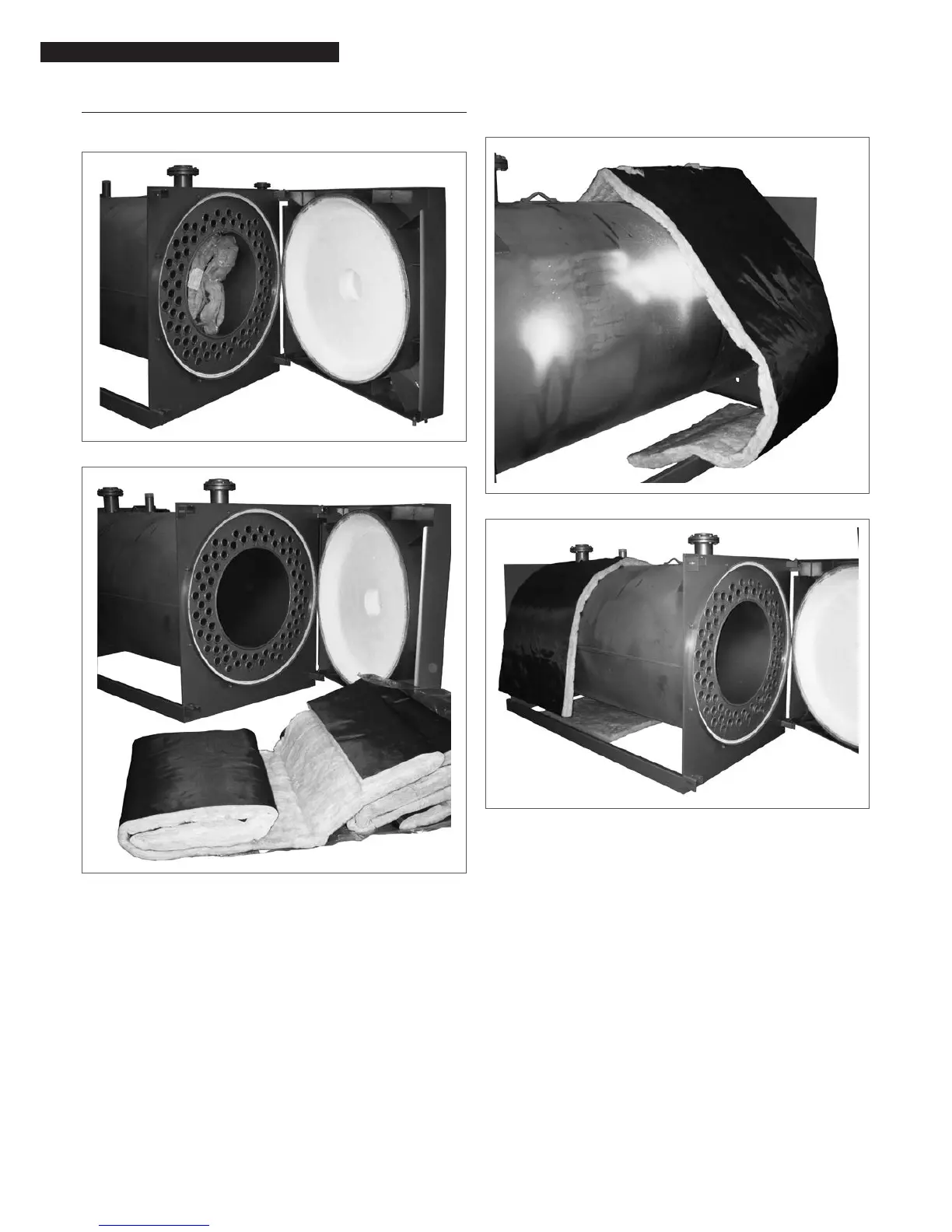

2.11 Fitting the insulation and turbulators
Open the door and remove the insulation.
Fit the insulation over the rear of the combustion chamber rst,
wrapping it around as shown in the gure.
Then t the insulation over the front.
