rigert Ltd., Stairlifts
Operating manual
Nr.: AW4231
CH-6405 Immensee
Fault finding PEGASUS-NOVA-mps2
Date: 13.03.06
Page: 10/22
3.2 Check adjustments on carriage PCB
Check adjustments for compliance with the specification sheet FO3161 (at bottom of spec. sheet)
If adjustments comply, proceed to point 4
If not, go to point 3.2.1

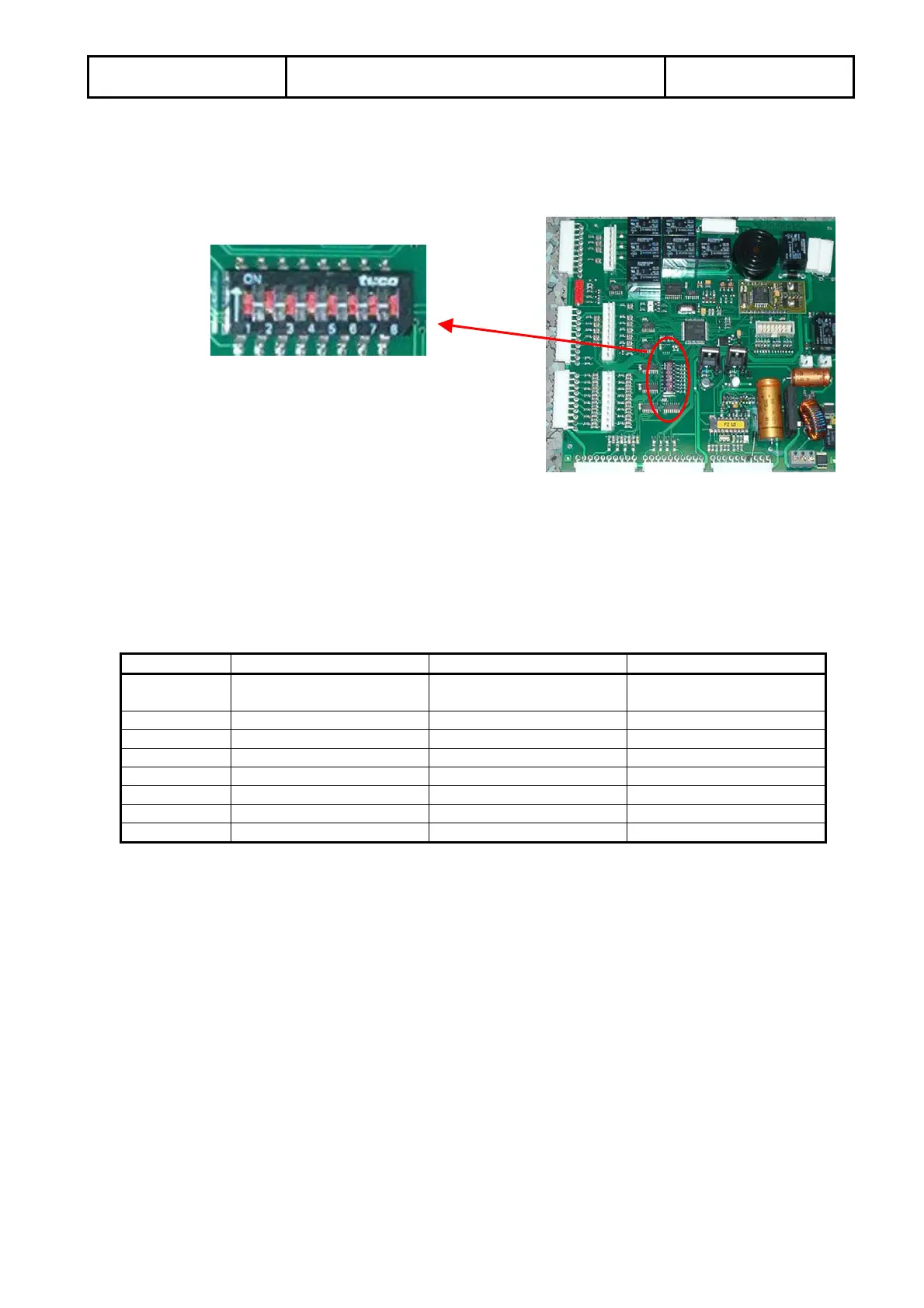

3.2.1 Explanation of the possible adjustments
Before changing any Dip-switch position, check carefully that the option is built into the carriage !
Parameter ON OFF
Dip 1 Type of carriage SIRIUS (seated
version)
Pegasus (Platform)
Dip 2
1
Opt. powered carriage Powered manual
Dip 3
2
Opt. platform lock Yes: S47 built in Without
Dip 4
2, 3
Opt. barrier arm down Yes: S16 / S17 built in S16 / S17 not present
Dip 5 Opt. side access ramp Yes No
Dip6 Opt. button “beep” Yes No
Dip 7 Not used
Dip 8 Switch test Active Not active
1 For Sirius: powered footrest
2 For Sirius: Dip-switch always on OFF
3 Applied for all platform stairlifts
To Next Page
