rigert PEGASUS-NOVA-mps2 - Explanation of Display for Menu FZ Status

rigert Ltd., Stairlifts
Operating manual
Nr.: AW4231
CH-6405 Immensee
Fault finding PEGASUS-NOVA-mps2
Date: 13.03.06
Page: 17/22

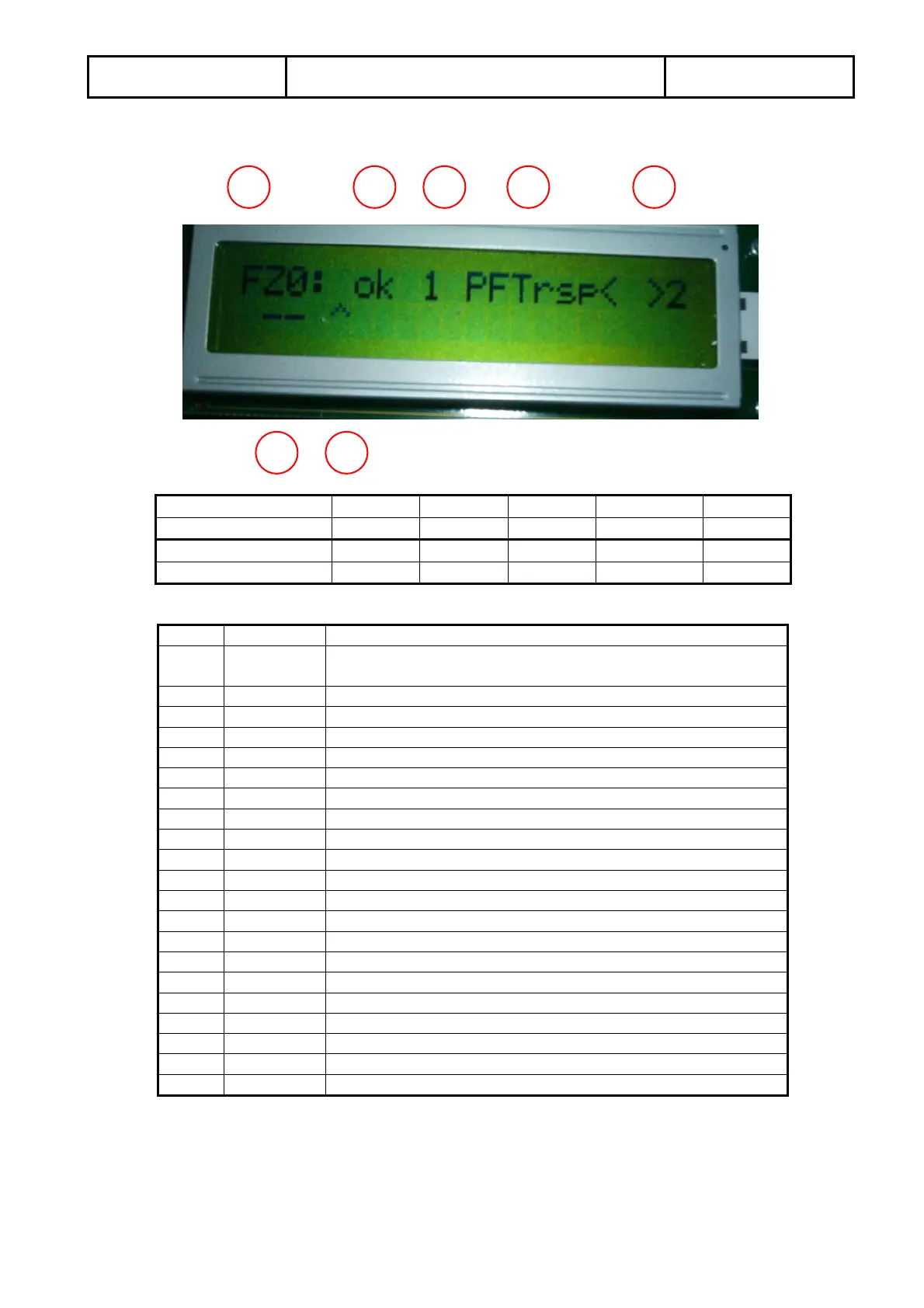

7.1.5 Explanation of display for menu FZ status
1
st
row
2
nd
row
Display
Fz0 Ok 1 PFTrsp < >2
Position No.
1 2 3 4 5
Display
- - ^’
Position No.
6 7
1 Fzo
Display menu
FZ0
Directional button pressed on carriage (Call stations
(RS) occupied)
2 ok
Everything ok
er
Fault on carriage
em
Emergency stop on carriage pressed
3 0
Carriage not on a landing
1 – 15
Carriage on the corresponding landing
4 PFZu
Platform folded up
PFTrsp
Platform folded down and carriage located on a landing
PFBew
Carriage is moving
PFzws Intermediate position of platform
PFErr
Fault on carriage
<
Obstacle LH (sensitive edge side wall)
v
Obstacle below side wall (sensitive edge side wall)
>
Obstacle RH (sensitive edge side wall)
2
Obstacle RH, below, LH on chanel 2
6 - -
Everything ok
On
Optional: Key switch on carriage activated
AL
Optional: Alarm button on carriage activated
7 ^’
Directional button upwards (on carriage)
S
Open barrier (on carriage)
v
Directional button downwards (on carriage)
1 2 3 4 5
6 7
