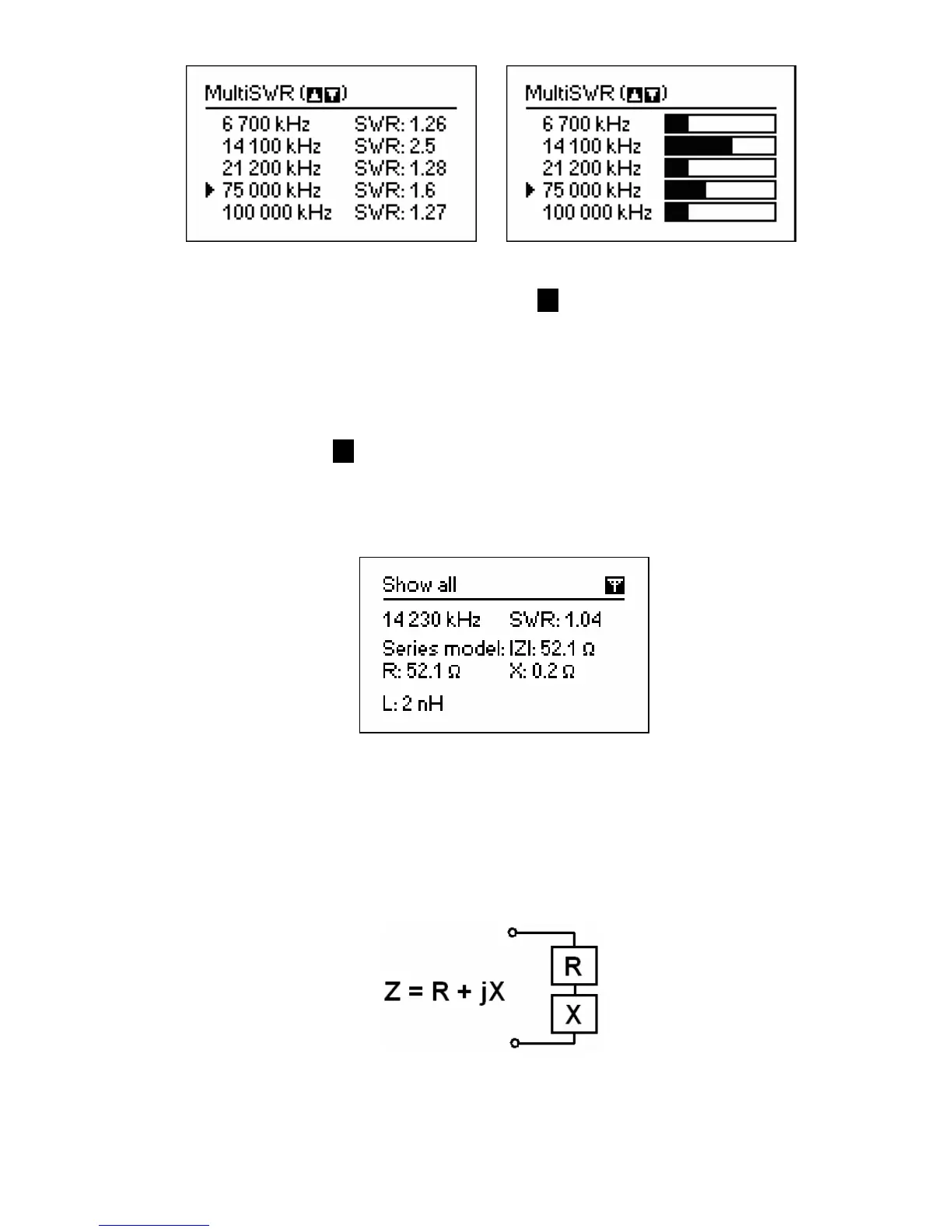

You may use this feature to tune multi-band antennas. Use up and down cursor keys to
select a frequency to be set or changed. Press the 0 key to switch between SWR bars
and numerical representation of these parameters.
4.2.4. “Show all” mode
The Show all mode (the 8 key) will show various parameters of a load at the single
screen. Particularly, SWR, |Z| (magnitude of impedance) as well as its active (R) and
reactive (X) components are shown. Additionally, corresponding values of inductance
(L) or capacitance (C) are displayed:
[Please notice that RigExpert AA-500 displays absolute value of the reactance, |X|.]
For this this mode, you may choose either series or parallel model of impedance of a
load through the Settings menu:
• In the series model, impedance is expressed as resistance and reactance
connected in series:
• In the parallel model, impedance is expressed as resistance and reactance
connected in parallel:
